Product Details:
|
| Specification: | 16-52mm | Screw: | Single-Screw |
|---|---|---|---|
| Engagement System: | Full Intermeshing | Automation: | Automatic |
| Control: | PLC | Cooling Way: | Water Cooling |
| Type: | Pipe Extruder | Condition: | New |
| High Light: | 52mm Plastic Corrugated Pipe Making Machine,PA Corrugated Pipe Making Machine,52mm corrugated pipe production line |
||
PE/PP/PA 16-52mm Plastic Single Wall Corrugated Pipe Extrusion Line
Qingdao Win Win Machinery Co.,Ltd is one of the most proffesional corrugated pipe extrusion line manufacturer in China market. We focus on corrugated pipe machinery business and production over 10 year, high quality and automatic system is highly praised by customers.
We produce different type of corrugated plastic pipe machine with different speed and diameters.
| Machinery Type | Pipe Diameter OD | Moulds Quantity | Forming Speed |
| SJ-16/54 | 7mm-16mm | 54 Pairs | 15m/min |
| SJ-38/44 | 12mm-38mm | 44 Pairs | 15m/min |
| SJ-38/72 | 12mm-38mm | 72 Pairs | 20m/min |
| SJ-38/81 | 12mm-38mm | 81 Pairs | 30m/min |
| SJ-52/60 | 16mm-52mm | 60 Pairs | 20m/min |
| SJ-75/60 | 30mm-75mm | 60 Pairs | 15m/min |
| SJ-110/60 | 50mm-110mm | 60 Pairs | 10m/min |
Machinery introduction of PE/PP/PA 16-52mm Plastic Single Wall Corrugated Pipe Extrusion Line

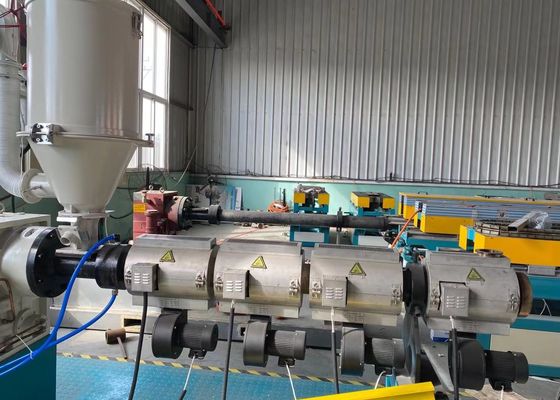

1. Extruder is high speed high efficiency type, our 45/33 extruder could meet 80kg/h capacity.
2. Die is Modulating forging materials, easy for operation and high precision.

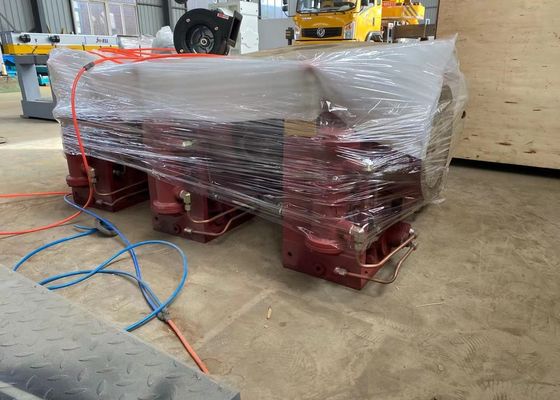

3. We adopt Gear driven and truck block working technology for corrugated forming machine. We have many types of forming machine to meet different capacity request and price.
4. The Coiler adopt automatic ranking system by inverter control.
Equipment List:
| No. | Name | Quantity |
| 1 | Single screw extruder | 1 SET |
| 2 | Head die and mould | 1 SET |
| 3 | Mould block | 1 SET |
| 4 | Forming machine | 1 SET |
| 5 | Winder | 1 SET |
