80kg/H PE PP Single Wall Corrugated Pipe Extrusion Line Single Screw

80kg/h PE PP Single Wall Corrugated Pipe Tube Extrusion Line

Machinery introduction:
1. Extruder is high speed high efficiency type, our 45/33 extruder could meet 80kg/h capacity.
2. Die is Modulating forging materials, easy for operation and high precision.

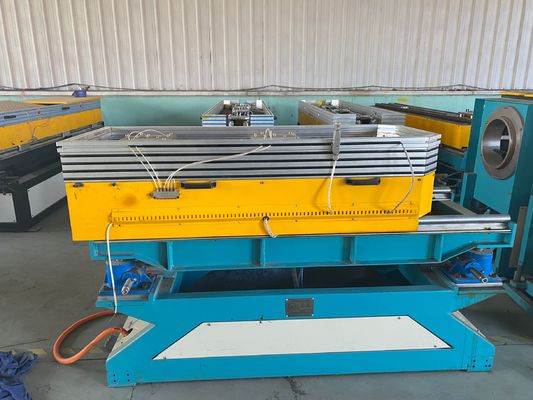

3. We adopt Gear driven and truck block working technology for corrugated forming machine. We have many types of forming machine to meet different capacity request and price.
4. The Coiler adopt automatic ranking system by inverter control.


Equipment List:

Quick Details

• Condition: New
• Application: Pipe
• Plastic Processed: PE PP PVC
• Screw Design: Single-screw
• Automatic Grade: full automatic
• Place of Origin: Shandong, China (Mainland)
• Brand Name: changjie
• Model Number: SJ series for single wall corrugated pipe production line
• Voltage: 3P 380V 50HZ
• Power(W): 1.5-45kw
• Dimension(L*W*H): 10*1.5*3m
• Weight: 5 ton
• Certification: CE
• After-sales Service Provided: Engineers available to service machinery overseas
• Machine color: white and blue
• Process type: Extruding machine
• Name: single wall corrugatd pipe extruder machine
• Usage: threading and drain
• Inverter: ABB
• Motor: SIEMENS
• Contactor: SIEMENS
• Temperature control appearance: ORMON
• Cooling way: Recycling water
• Heating way: Electrical heating

Description of 80kg/h PE PP Single Wall Corrugated Pipe Tube Extrusion Line:

PE PP Single Wall corrugated pipe production line also called single wall corrugated pipe extruder, single wall corrugated pipe extrusion line, single wall corrugated pipe machine, single wall corrugated pipe equipment, single wall corrugated pipe extruder machine.ect
This pipe production line consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
We developed the mahcine on the basis of traditional structure, we give new designing on the forming table, we adopt SJ45, SJ65,SJ90,SJ120 to produce different range pipe diameter. our machine easy to operate, stable running, we provide long term after sell service.


Applications of 80kg/h PE PP Single Wall Corrugated Pipe Tube Extrusion Line:

80kg/h PE PP Single Wall Corrugated Pipe Tube Extrusion Line can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA continuously, as well as PA corrugated pipes.
plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...
Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
