180-250kg/Hr PVC Pipe Making Machine Conical Twin Screw Extruder
Technical parameter for PVC Pipe Machine
| Diameter(mm) |
16-40dual |
20-63dual |
20-63 |
75-200 |
160-315 |
315-630 |
| Extruder mode |
SJZ51/105 |
SJZ65/132 |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ92/188 |
| Extruder power (kw) |
18.5AC |
37AC |
18.5AC |
37AC |
55AC |
110DC |
| Max lineal speed (m/min) |
0.5-10 |
0.5-15 |
0.5-10 |
0.5-8 |
0.5-6 |
0.5-4 |
| Max capacity (kg/h) |
120 |
250 |
80-120 |
180-250 |
280-350 |
500-600 |
| Installation area |
|
|
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
Produce process for PVC Pipe :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

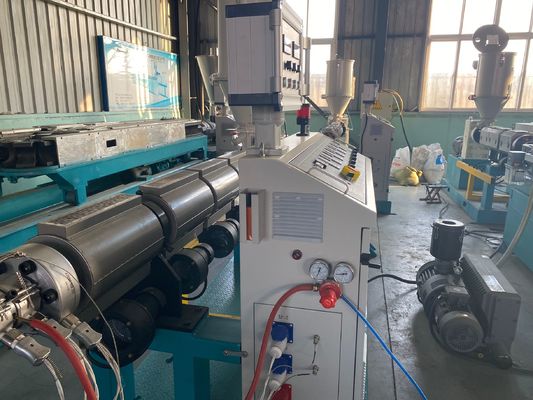

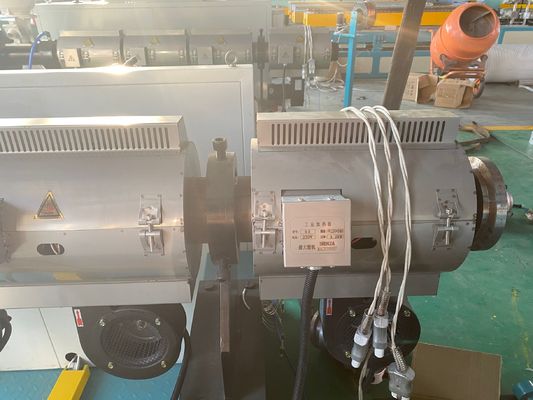

Introduction of 180-250kg/Hr PVC Pipe Making Machine Conical Twin Screw Extruder
For different pipe diameters, we offer different models of conical double screw Extruder for options: SJSZ51/105, SJSZ65/132, SJSZ80/156 and SJSZ92/188.
Equipped with high quality electrical components, like Siemens, Schneider, Omron, Fuji, Delta, etc.
Equipped with alloy screw & barrel, which guarantee high quality and stable output.
Equipped with high qualty gearbox and distributor.
Extruder control by PLC screen touch is available as well; PLC screen touch is from Siemens.
GF series Vacuum calibration Tank, SUS304 with spraying painting or pure SUS304 body is for option.
Available sizes for different pipe diameters from 16mm upto 800mm.
Equipped with famous and high quality vacuum pump and water pump with overload protection; water temperature auto controlling.
4/6/8/10/12 cooling tubes installed inside of the Tank, with ABS sprayers.
5meters, 6meters, 9meters and other lengths for option, according to different pipe pressure requirements.
For different pipe diameters, we offer the suitable Haul off unit, like Double caterpillar, Four-cataerpillar, Three Caterpillar, Four Caterpillar, Six Caterpillar, Eight Caterpillar, etc.
Machine speed control is with ABB Inverter.
Machine is controlled together with Vacuum calibration Tank and Cutter.
Normal Knife-lifting Cutter and Planetary Cutter are available for small and large pipe diameters.
Both types of cutters are equipped with dust collector.
