Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Twin-screw |
|---|---|---|---|
| Motor Brand: | Siemens | Output Capacity: | 200-260kg/Hr |
| Inverter: | ABB | Feeding Mode: | One Feed |
| High Light: | 260kg/H PVC Pipe Extrusion Line,200kg/H PVC Pipe Extrusion Line,PVC Plastic Twin Screw Extruder Machine |
||

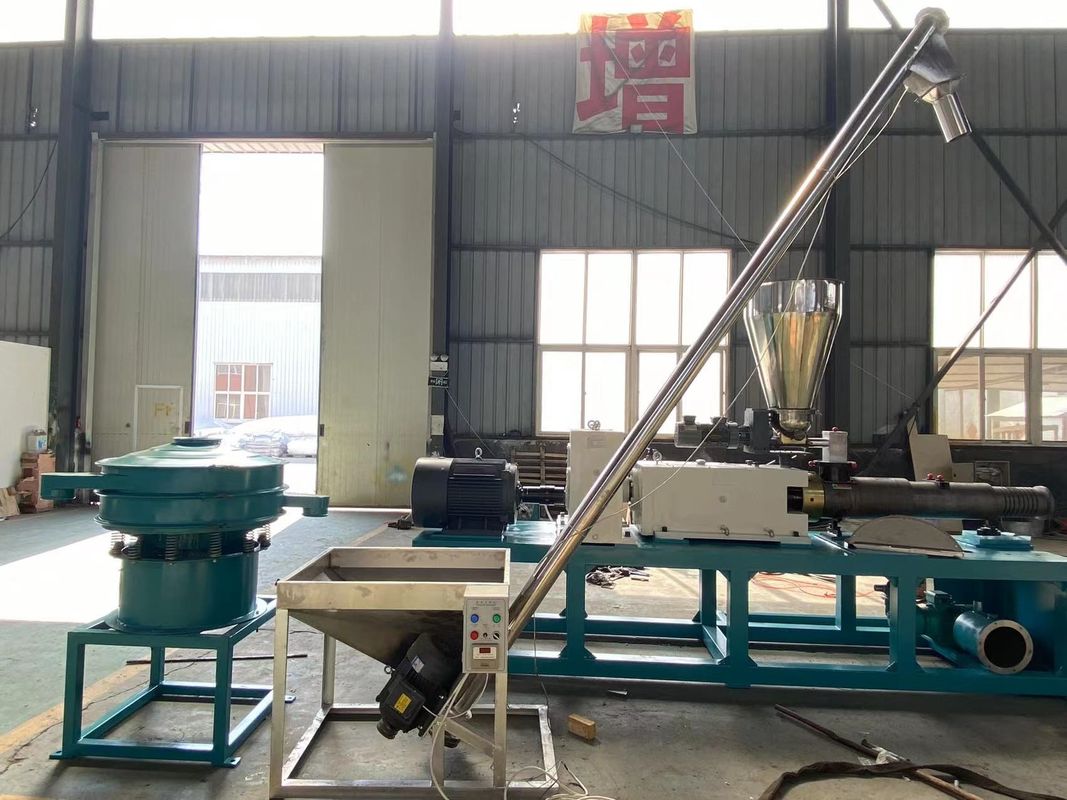

200-260kg/h PVC Plastic Pipe Making Machine Conical Twin Screw Extruder Machine
| Extruder Model | Extrusion output | Main motor power | Screw speed | Barrel Outside cooling | Screw Material | Barrel Material |
| PLCS 55/110 | 120~180kg/h | 22kw; AC Motor | 38.4r/min | 400w×3 wind cooling fan | 38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.5-0.6 Hardness(HV):740-940 Surface roughness≤0.8um |
38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.4-0.7 Hardness(HV):740-940 Surface roughness≤0.8um |
| PLCS 65/132 | 200~260kg/h | 37kw; AC Motor | 38.4r/min | 550w×3 wind cooling fan | ||
| PLCS 80/156 | 300~450kg/h | 75kw; AC Motor | 40 r/min | 550w×5 wind cooling fan | ||
| PLSS 45/30 | 30~40 kg/hr | 18kw; DC motor | 100r/min | 150w×3 wind cooling fan |
PVC pipe production line is mainly used in the area of agriculture water supply system, architectural water supply system, pavement of cables, ect, as well as PVC pipe material of all sorts of pipe caliber and wall thickness, this machine group consists mainly of twin concial screws extruder, vacuum calibrating tank, haul off unit, cutting unit, tilter, ect, single screw extruder and haul off unit have applied impoded AC inverter, both vacuum pump and driving motor have applied excellent products, the drawing machine included two-claw type, four claw type, six-claw type, ect, and following planetary cutting machine, it has reached world advanced level.
