Product Details:
|
| Plastic Processed: | PP PE | Screw No.: | Single-screw |
|---|---|---|---|
| Motor: | ABB | Feeding Mode: | One Feed |
| Condition: | New | Warranty: | 1 Year |
| High Light: | High Speed Corrugated Pipe Extrusion Line,10mm Corrugated Pipe Extrusion Line,Single Wall Corrugated PE Pipe Extruder |
||
10-50mm High Speed PE PP Pipe Single Wall Corrugated Pipe Extrusion Line
High speed single wall corrugated pipe making machine can produce PE,PP,EVA, PVC, PA etc material single wall corrugated pipe continuously. We designed new technology, replace the traditional chain forming machine. The appearance and precision of single wall corrugated pipe hav improv gratly. The production line is driven by gears, and the mold runs in the track. It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.
| Model | Pipe Diameter | Production Speed | Extruder Model | Motor Power | Qty Of Molds |
| GSDBGZ-50 | 10-50mm | 12-20m/min | 65/30 | 30 Kw | 72 pairs |
| GSDBGZ-12 | 4.5-12mm | 10-20m/min | 45/28 | 7.5 Kw | 63 pairs |
10-50mm High Speed PE PP Pipe Single Wall Corrugated Pipe Extrusion Line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.
Features:

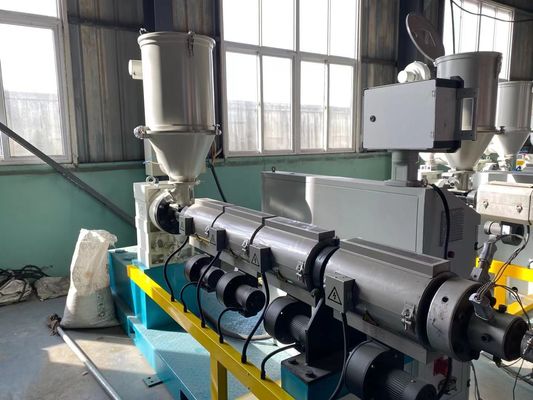

1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

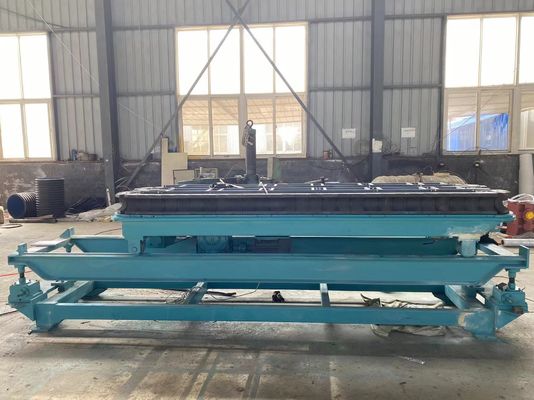

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4.Coiler :Single position or double position with torque motor.
5.Electrical parts: ABB inverter, Schneider contactor, RKC thermo controllers etc.
Single wall corrugated pipe extrusion line designed by our company can produce PP/PE/EVA/PVC etc single wall corrugated pipes, which takes the advantages of high temperature resistance, abrasion resistance, corrosion resistance, high strength. This hose can be widely used in wire and cable products threading pipes, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc.
