Product Details:
|
| Plastic Processed: | PP PE PVC | Pipe Diameter (mm): | 20-40 |
|---|---|---|---|
| Temperature-Controlled: | Omron | Inverter: | ABB |
| Contactor: | Siemens | Warranty: | 1 Year |
| High Light: | PVC Corrugated Pipe Extrusion Line,PE Corrugated Pipe Extrusion Line 40mm,PP Single Wall Corrugated Pipe Extruder |
||

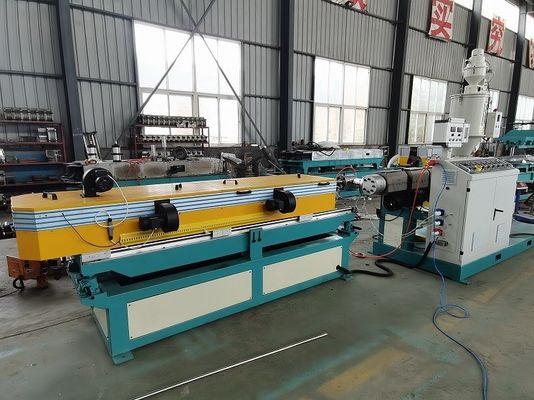

20/25/32/40mm Small Size PP PE PVC Single Wall Corrugated Pipe Extrusion Line
| Type | FG-10 | FG-25 | FG-63 | FG-75 | FG-160 |
| Screw diameter(mm) | 45 | 45 | 65 | 65 | 75 |
| L/D | 30:1 | 30:1 | 33:1 | 33:1 | 33:1 |
| Install power(kw) | 45 | 50 | 70 | 80 | 100 |
| Pipe diameter(mm) | 6-10 | 8-20 | 16-63 | 50-75 | 90-160 |
| Haul-off speed(m/min) | 20 | 15 | 10 | 10 | 5 |
Properties:

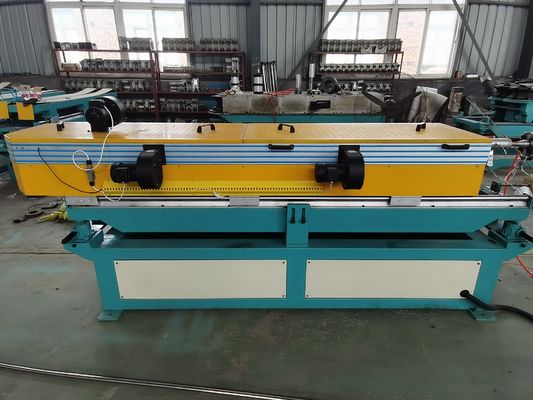

Mini single wall high speed corrugated pipe forming machine: can produce two diameter or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the mould blocks and reduce the time for changing the mould blocks, increase the efficiency.
Usgae:
The pipe from this machine is anti-high temperature, anti-wear, and high strength, and it is widely used in electrical conduct, car conduct pipe, protective pipe, machine area and automatic meter area. With our special design screw and advanced mould, the line is high speed, run stable and easy-control.
Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing
