Product Details:
|
| Plastic Processed: | PP PE | Screw No.: | Single-screw |
|---|---|---|---|
| Output: | 130-200g/h | Motor Power: | 37kw |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | Single Wall Pipe Production Line 25m/min,37kw Corrugated Pipe Production Line,CE Single Wall Corrugated Pipe Machine |
||
20-25m/min High Speed Single Wall Corrugated Pipe Production Line
| Pipe line model | Diameter Range(mm) | Extruder Model | Max.Output(kg/h) | Main Motor Power(KW) | Max.Machine Speed(m/min) |
| FST-12 | 12-32 | SJ45 | 50 | 22 | 25 |
FST-50 | 32-50 | SJ65 | 100 | 45 | 25 |

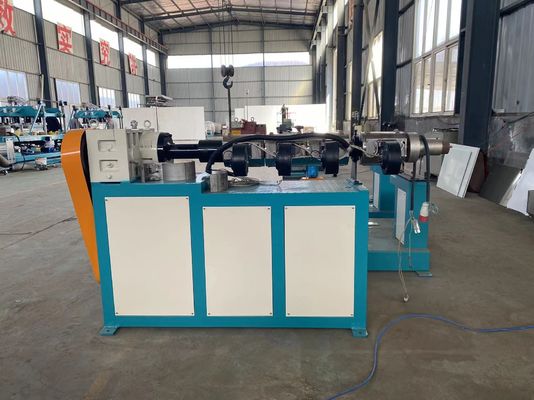

65/33 Single screw extruder
Screw diameter: 65mm
L/D Ratio: 33:1
Screw&barrel material: 38CrMoAlA
Motor: 45kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:130-200 kg/h
Temperature Control: Ormon

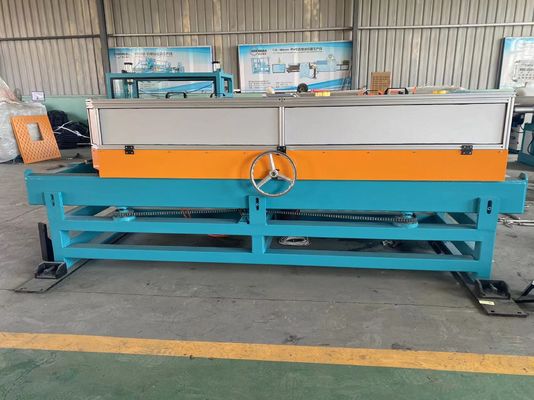

Corrugated pipe forming machine(High speed)
Motor: 3kw
Production speed:20-25m/min
Quantity of shaping mold:72 pairs per set
Cooling method:Water cooling
Double WinderInner diameter of coil(mm):can be made as your request
Outside diamter of coil(mm):can be made as your request
Working method: pneumatic
Main Features of 20-25m/min high-speed single-wall corrugated pipe production line
1.Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion.
2.Plastic corrugated pipe machine/small diameter single wall corrugated pipe line/pvc corrugated pipe machine with price various diameter and wall thickness, from 10-50mm.
3.adoped the Simens, ABB, famous brand electric components and high quality extruder alloy screw and barrel.
