Product Details:
|
| Plastic Processed: | HDPE | Screw No.: | Single-screw |
|---|---|---|---|
| Specification: | ID 9-50mm | Keywords: | Plastic Machine |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | PE Single Wall Corrugated Pipe Line,Wire Sheath Single Wall Corrugated Pipe Line,PE single wall corrugated pipe production line |
||

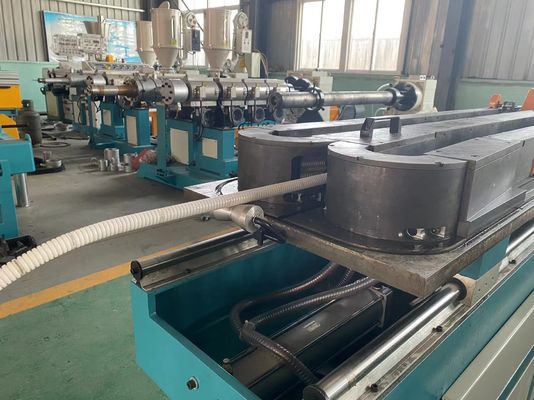

PE Single Wall Corrugated Pipe Line for Making The Electric Wire Sheath
High speed single wall corrugated pipe making machine can produce PE,PP,EVA, PVC, PA etc material single wall corrugated pipe continuously. We designed new technology, replace the traditional chain forming machine. The appearance and precision of single wall corrugated pipe hav improv gratly. The production line is driven by gears, and the mold runs in the track. It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.
| Model | Pipe Diameter | Production Speed | Extruder Model | Motor Power | Qty Of Molds |
| GSDBGZ-50 | 10-50mm | 12-20m/min | 65/30 | 30 Kw | 72 pairs |
| GSDBGZ-12 | 4.5-12mm | 10-20m/min | 45/28 | 7.5 Kw | 63 pairs |
