Product Details:
|
| Plastic Processed: | PE PP PVC | Screw No.: | Single-screw |
|---|---|---|---|
| Specification: | 10-32mm | Keywords: | Plastic Machine |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | 32mm Single Wall Corrugated Pipe Extrusion Line,PVC Breathing Pipe Machine,32mm Breathing Pipe Machine |
||
10-32mm PE PP PVC Breathing Pipe Machine Single Wall Corrugated Pipe Extrusion Line

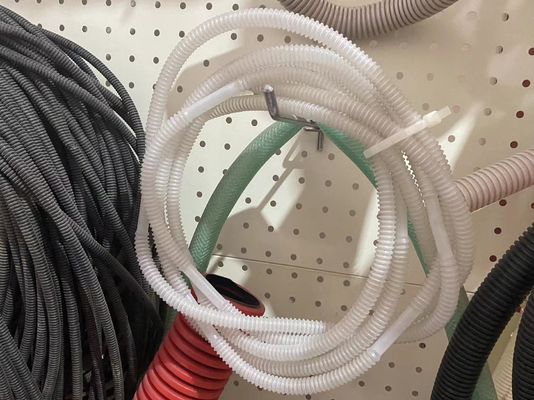

10-32mm PE PP PVC Breathing Pipe Machine Single Wall Corrugated Pipe Extrusion Line produced by our single wall corrugated pipe machine have many features such as high intensity, good flexibility,high temperature resistance, resistant to corrosion and abrasion, etc.
Breathing pipe medical corrugated pipe machines adopts the stainless steel material, which is absolutely meet the medical devices standard that is free of dust and germfree, so you can get the high quality medical pipes from our machines.
|
Model
|
Pipe Diameter
|
Extruder
|
Machine Speed(m/min)
|
Output(kg/h)
|
|
FST-32
|
10-32
|
SJ45
|
25
|
80
|
|
FST-50
|
32-50
|
SJ65
|
25
|
120
|
Introduction of 10-32mm PE PP PVC Breathing Pipe Machine Single Wall Corrugated Pipe Extrusion Line
SJ-45/30 single screw extruder
Screw diameter: 45mm
L/D Ratio: 30:1
Screw&barrel material: 38CrMoAlA
Motor: 11kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:35 kg/h
Temperature Control: Ormon

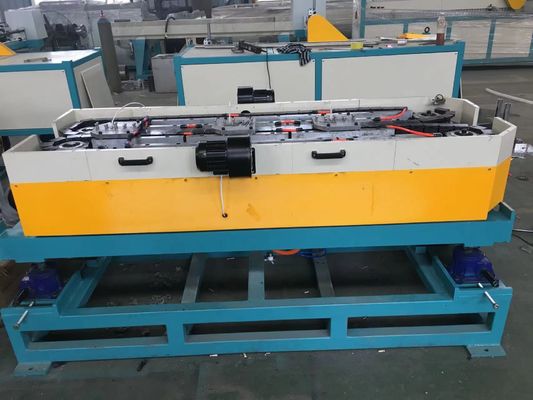

Corrugated pipe forming machine
Motor: 3kw
Production speed:1-10m/min
Quantity of shaping mold:50 pairs per set
Cooling method:Water cooling
Winder
