Product Details:
|
| Plastic Processed: | HDPE/PP | Screw No.: | Single-screw |
|---|---|---|---|
| Install Power: | 30kw | Condition: | New |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | Electrical Conduit Sheath Pipe Extrusion Line,Nitriding Corrugated Pipe Extrusion Line,Single Wall Corrugated Sheath Pipe Extruder |
||
Plastic PE PP Electrical Conduit Protective Sheath Pipe Single Wall Corrugated Pipe Extrusion Line
MACHINE DETAIL
| Modle | UNIT | JG-DBG90 |
| Raw Materoal | PE | |
| Extruder | Φ 90/25 | |
| Range of Pipe Dia. | mm | Φ 50-160 |
| Water Consumption | L/H | 4000 |
| Water Pressure | Mpa | 0.4-0.6 |
| Numble of Mould Block | Pair | 50 |
| Move Speed of Mould Block | m/min | 1-12 |
| Dimension (L × W × H) | m | 18× 1.35× 1.7 |
| Total Weight (Approx) | T | 6 |
APPLICATION:
Mainly used in wire and cable products threading pipe, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc.
THIS LINE IS CONSIST OF:
1. Single Screw Extruder 1 set or 2 sets
2. Die Head 1 set
3. Molding Machine 1 set
4. Shaping Moldules 1 set
4. Twin Position Pipe Winder 1 set(as options)
5. Electrical Cabinet 1 set
MACHINE FEATURES:
1. Single Screw Extruder
1) L/D: 30/1
2) Screw and Barrel Material: 38 CrMoAlA
3) Surface Treatment of Screw and Barrel: Nitriding and Polishing
4) Barrel Heating Mode: Cast-Aluminium Heating Circles
5) Barrel Cooling Mode: Air-Blower
2. Gearbox Reducer
1) Type: Hardening Gear Surface, Low Noise
2) Gear Material: 20CrMoTi
3. Die Head/Mould
1) Specification: 8-50mm
2) Surface Treatment: Exact Grinding Processing After Forging with Die Steel

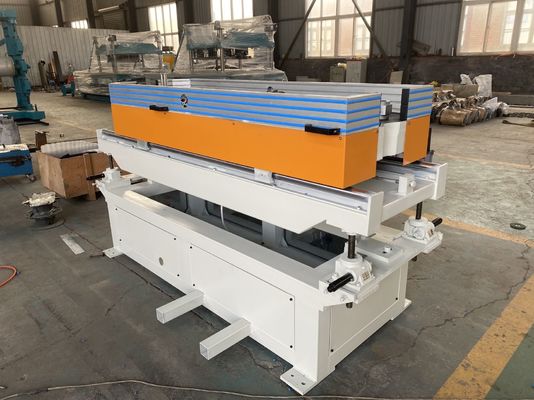

4. Molding Machine
1) Molding Module: 39 Pairs or More
2) Molding Module Material: 45# Stainless Steel, Through Exact Processing
3) Cooling Mode: Air-Blower
4) Speed Control: Japan Omron Frequency Inverter
5. Twin Position Pipe Winder
6. Electrical Cabinet
1) Main Electrical Components: ABB, Omron, Simens, RKC etc.
