Product Details:
|
| Screw No.: | Single-screw | Install Power: | 30kw |
|---|---|---|---|
| Condition: | New | Color: | Customized |
| Warranty: | 1 Year | Plastic Processed: | HDPE/PP |
| High Light: | PA Corrugated Pipe Line,30kw Single Wall Corrugated Pipe Line,60kg/h PVC Corrugated Pipe Extrusion Line |
||
PE / PVC / PP / PA Corrugated Pipe Line Single Wall Corrugated Pipe Extrusion Line
Product Description
PE / PVC / PP / PA Corrugated Pipe Line, Corrugated Pipe Machinery
Single Wall pLastic Corrugated pipe extruder machine, conduits corrugated pipe line
The machine is used to produce single wall corrugated pipe by PE PVC PP or PA Nylon Materials. This kind of corrugated pipe normally size is 10-50mm diameters, popular used in machine tool, machine building, electric insulation protection system, electric automatic control system, public traffic equipment, motor, electric locomotive and air-conditioner equipment, etc.
Our machines is European design and meet 20m/min corrugated pipe extrusion in China market.
The high speed corrugated pipe machinery features are:
1. High speed high efficiency extruder, 20% less power than normal type but 20kg/h higher output. Our high speed efficiency extruder is enough to support 20m/min for 10-50mm diameter corrugated pipe.

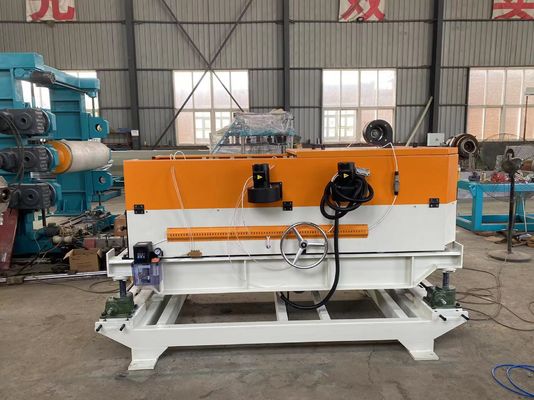

2. Good design and good quality forming machine. Gear driven and 100% covered water cooling system for forming machine to support high speed running.
3. Automatic winder, it could meets up to 25m/min speed coiling.
Single Wall plastic Corrugated pipe extruder machine, conduits corrugated pipe line Informations:
Main technical parameter
| Model | KBL-50PVC | KBL-50PVC |
| Pipe range(mm) | Φ20-50 | Φ10-50 |
| Extruder model | KBL65/28 | KBL50/28 |
| Max. output(kg/h) | 80 | 60 |
| Main Motor power(kw) | 30 | 15-18kw |
| Length of production line(m) | 10 | 10 |
