Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Double-screw |
|---|---|---|---|
| Capacity: | 240kg/H | Motor Power: | 37KW |
| Computerized: | Computerized | Condition: | New |
| High Light: | Plastic Double Screw Extruder,Electrical Conduit Double Screw Extruder 37KW,240kg/H Drainage PVC Pipe Extrusion Line |
||
Plastic Twin Double Screw Extruder Electrical Conduit Water Supply Drainage PVC Pipe Extrusion Line
The PVC pipe production line is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, and cable laying.
The unit consists of conical twin-screw extruder, mold, vacuum tank, haul-off machine, cutting machine, tracker and so on.
Main Technical parameters of the Machine:
| Model | Pipe Diameter(mm) | Extruder Model | Line Speed (m/min) | Output (kg/h) | Power (kw) | Dimension (L×W×H) |
| SSG-63P | 16-63 | SJSZ-51/105 | 1-12 | 120 | 65 | 30×1.8×2 |
| SSG-160P | 75-160 | SJSZ-65/132 | 0.5-5 | 260 | 105 | 36×2×2 |
| SSG-250P | 90-250 | SJSZ-80/156 | 1-3.6 | 400 | 145 | 37×2×2 |
| SSG-400P | 200-400 | SJSZ-92/188 | 0.2-2 | 600 | 210 | 42×2.5×2.5 |
| SSG-630P | 400-630 | SJSZ-92/188 | 0.08-0.8 | 700 | 245 | 48×2.5×2.5 |
1. Plastic Mixer Unit
PVC stabilizer,plasticizer,antioxidant and other accessories are added into the high-speed mixer in proportion and process.
It has the advantages of fast mixing, uniform mixing,easy operation,easy cleaning ,durability,compact structure and so on.

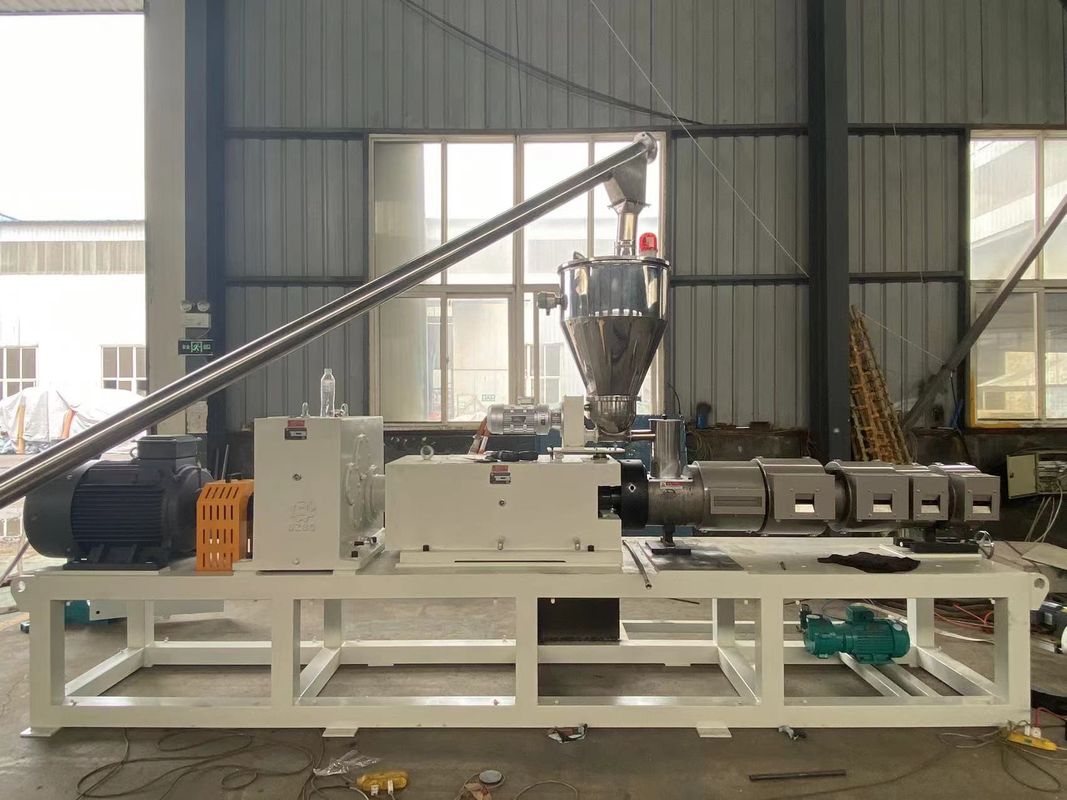

2.Twin screw extruder
The machine is equipped with a quantitative feeding device to match the extrusion quantity and ensure the stable extrusion of the products.
3.Extrusion Mold
It is the construction part of pipe forming
4.Vacuum forming machine
For pipe shaping and cooling,equipped with vacuum system and water circulation system for shaping and cooling,stainless steel box,circulating water spray cooling.
5.Haul off machine
Used for continuous and automatic extraction of cooled and hardened pipes from the nose,frequency conversion speed regulation
6.Cutting machine
The cutting machine takes the fixed length switch signal as the instruction,completes the whole cutting process,and keeps synchronization with the pipe operation during the cutting process
Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.
The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw
extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.
Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
