Product Details:
|
| Product Type: | PVC Pipe | Screw No.: | Double-screw |
|---|---|---|---|
| Capacity: | 240kg/H | Motor Power: | 37KW |
| Computerized: | Computerized | Condition: | New |
| High Light: | 240kg/H Automatic Plastic Twin Screw Extruder,CPVC Pipe Making Machine,Plastic UPVC Pipe Twin Screw Extruder |
||
Automatic Plastic Twin Screw Extruder PVC/UPVC/CPVC Pipe Making Machine Extrusion Line
| Model/Item | SW-63 | SW-110 | SW-160 | SW-250 | SW-400 | SW-630 | SW-800 |
| Diameter range/mm | 20-63 | 20-110 | 50-160 | 50-250 | 110-400 | 315-630 | 400-800 |
| Extruder model | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 | SJSZ92/188 | SJSZ92/188 |
| Driving motor power/kw | 37 | 37 | 37 | 55 | 90 | 110 | 132 |
| Pipe pulling speed/meters/minute | 12-15 | 10-12 | 5-8 | 4-6 | 3-4 | 0.5-2 | 0.5-1 |
Mixing machine
· Mixing PVC powder, CACO3 and other addictives.
· Widely used in PVC pipe and profile production.
· Composed of high speed mixer (hot mixer), cooling mixer and control cabinet.
· Stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
· The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.

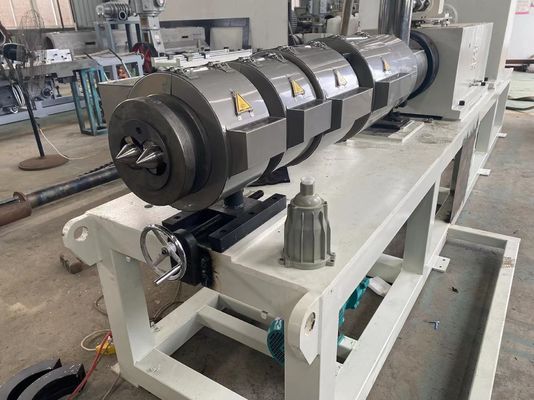

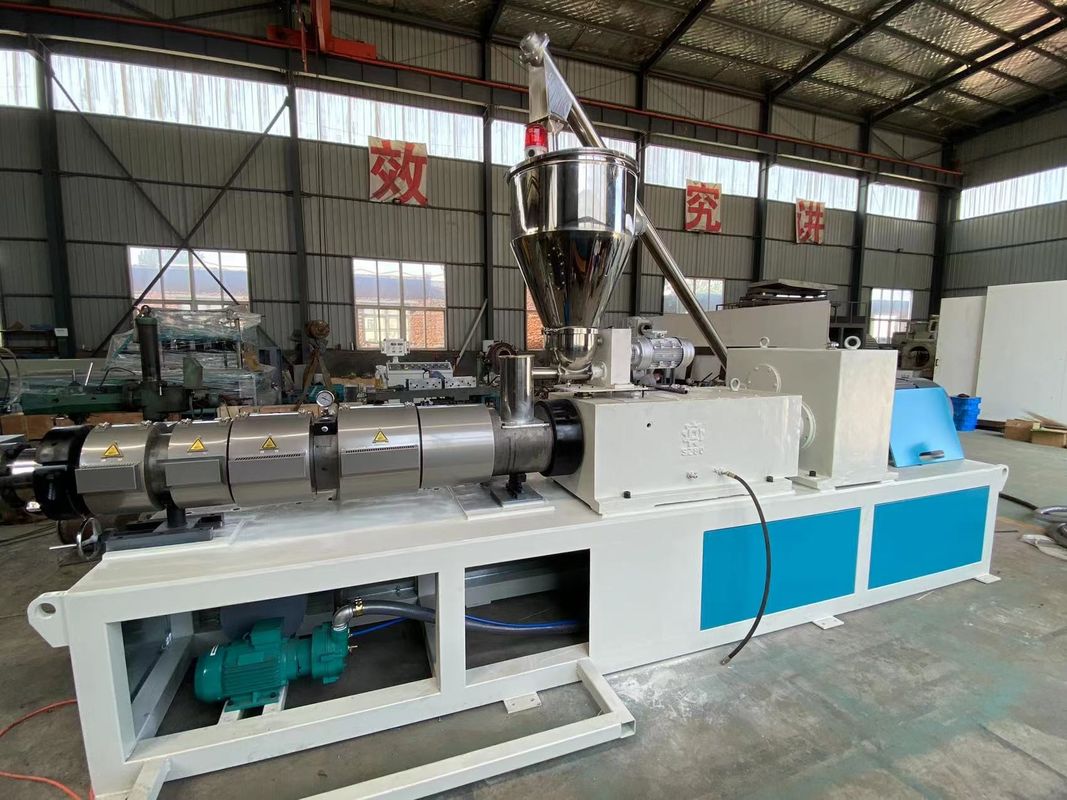

Twin screw extruder
Different models for options: SJSZ51/105, SJSZ65/132, SJSZ80/156 and SJSZ92/188.
High quality electrical components, like Siemens, Omron, Fuji, Delta, etc.
Alloy screw & barrel, which guarantee high quality and stable output.
Equipped with high qualty gearbox and distributor.
Extruder control by PLC screen touch is available as well; PLC screen touch is from Siemens (customized).
Vacuum calibration Tank
Our Vacuum calibration Tank, SUS304 with spraying painting or pure SUS304 body is for option.
Available sizes for different pipe diameters from 16mm upto 800mm.
Equipped with famous and high-quality vacuum pump and water pump with overload protection; water temperature auto controlling.
4/6/8/10/12 cooling tubes installed inside of the Tank, with ABS sprayers.
5meters, 6meters, 9meters and other lengths for option, according to different pipe pressure requirements.
Haul-off machine
For different pipe diameters, we offer the suitable Haul off unit, like Double claw, Four-claw, three claw, four claw, six claw, eight claw, etc.
Machine speed control is with ABB Inverter.
Machine is controlled together with Vacuum calibration Tank and Cutter.
Cutting machine
Normal Knife-lifting Cutter and Planetary Cutter are available for small and large pipe diameters.
Both types of cutters are equipped with dust collector.
