Product Details:
|
| Product Type: | PP PE PVC | Screw No.: | Single-screw |
|---|---|---|---|
| Diameter: | 11-28mm | Production (m/min): | 15-20 |
| Cooling Mode: | Water Cooling | Warranty: | 1 Year |
| High Light: | PVC Single Wall Pipe Production Line,15m/min PVC Corrugated Pipe Production Line |
||
High Speed PP PE PVC Single Wall Corrugated Pipe Production Line Extrusion Line
|
No. |
Name |
Quantity |
| 1 |

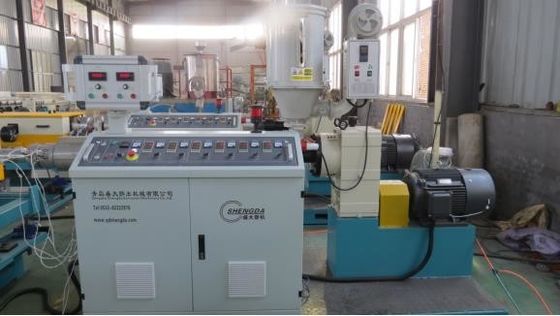

SJ-55/30 single screw extruder |
1SET |
| 2 |
Head die |
1SET |
| 3 |
Forming mold |
1SET |
| 4 |

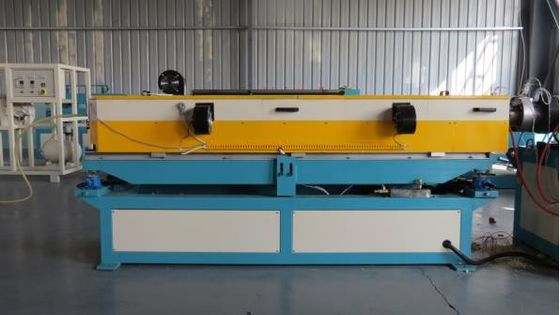

Forming machine |
1SET |
| 5 |
Double position winder |
1SET |
High Speed PP PE PVC Single Wall Corrugated Pipe Production Line Extrusion Line Description:
1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc
3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
High Speed PP PE PVC Single Wall Corrugated Pipe Production Line Extrusion Line Features:
Fully PLC controlled mahine
High and stable extrusion capacity
Corrugator mould one mould two size
Good water cooling or air cooling system
Progress of High Speed PP PE PVC Single Wall Corrugated Pipe Production Line Extrusion Line :
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Parameters
| Material | Machine model | Extruder | Pipe diameter(mm) | Production speed(m/min) |
| PE/PP | SNDPG-25 | SJ45/30 | φ11mm-φ25mm | 20 |
| SNDPG-63 | SJ55/30 | Φ25mm-φ63mm | 10 | |
| SNDPG-90 | SJ65/30 | Φ50mm-φ90mm | 5 | |
| PVC | SNDPG-63 | SJZ51/105 | Φ25mm-φ63mm | 5 |
| SNDPG-110 | SJZ65/132 | Φ50mm-φ110mm | 3 |
1. This line is mainly used to process nylon, polyethylene (PE), polypropylene (PP) and PVC into small diameter single corrugated pipe.
2. Pipes are formed in one step through specialized moulds. Thus pipes are of smooth internal & outer surface and even corrugation.
3. The final pipes are available as protection pipe for wire and cable, drainpipe for washing machine and air-conditioner, gas hose for vacuum cleaner, and air vent, etc.
4. The Diameter of pipe is 10-50mm.
