Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line

Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line
Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line
Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line

Large Image :  Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line

Product Details:
Place of Origin: China
Brand Name: win-win
Certification: CE
Model Number: SJ-55/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Standard
Delivery Time: 45 workdays
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now

Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line

Description
Material: HDPE Spec Of Pipe: Φ 12.5-50mm
Speed Of Line: 1-8m/min Out Put: ≥45 Kg /h
Total Powder: 50KW(the Actual Use About 35 Kw) Automatic Grade: Automatic
High Light:

PE Plastic Pipe Extrusion Machine

,

8m/min Plastic Pipe Extrusion Machine

,

50KW Corrugated Pipe Extrusion Line

Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line



Model
Pipe diameter
Extruder model
Motor power
Production speed
Mold pairs
Vacuum pump
(Option)
SJ-14
5-14mm
SJ-45
11KW
6-8m/min
42

SJ-32
10-32mm
SJ-50
15KW
5-12m/min
50
1.5kw
SJ-50
16-50mm
SJ-65
30KW
3-10m/min
50
2.2kw
SJ-63
16-63mm
SJ-65
30KW
3-10m/min
50
2.2kw
SJ-110
32-110mm
SJ-75
37KW
3-6m/min
72
5.5kw

Plastic Pipe Extrusion Machine PE Single Wall Corrugated Pipe Extrusion Line can be used to produce corrugated pipes of PP/PE/PVC/EVA/PA continuously. Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.

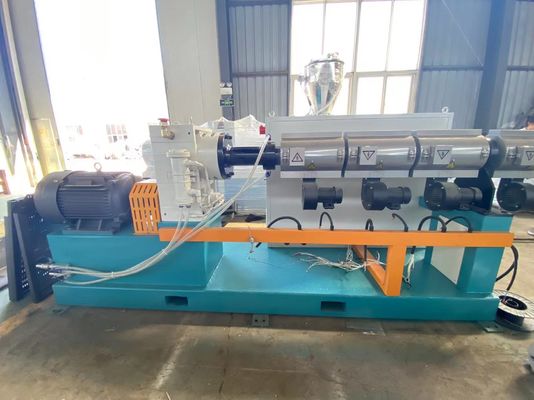

Single screw extruder

Extruder size according to different requirements of pipe diameter.
Motor power:30kw Motor brand:Siemens
Temperature controller: Omron
Frequency inventer:ABB

Pipe forming machine with forming mould

The forming machine can make vacuum type and normal type.
Vacuum type is suitable for making the corrugated pipe which with joint. Like washing machine pipe, shisha hookah hose etc.
