Product Details:
|
| Product Type: | PE PE PP PVC PA | Extruder Control: | By Siemens PLC Screen Touch |
|---|---|---|---|
| Automation: | Automatic | Condition: | New |
| Warranty: | 1 Year | Customized: | Customized |
| High Light: | pe single wall corrugated pipe extrusion line,plc single wall corrugated pipe extrusion line,conduit pvc corrugated pipe machine |
||
Plastic PE PE PP PVC PA Conduit Pipe Single Wall Corrugated Pipe Extrusion Line
1. Normal speed
| Model | Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | Production line speed(m/min) |
| CMDB-12 | Φ6-12 | SJ-45 | 40-60 | 16 | 42 | 6-12 |
| CMDB-32 | Φ16-32 | SJ-50 | 50-70 | 23 | 48 | 6-12 |
| CMDB-63 | Φ20-63 | SJ-65 | 60-100 | 38 | 56 | 4-8 |
| CMDB-80 | Φ50-80 | SJ-75 | 70-130 | 64 | 72 | 3-8 |
2. High speed
| Model | Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | Production line speed(m/min) |
| CMGB-14 | Φ7-14 | SJ45/SJ50 | 40-80 | 25 | 70 | 10-20 |
| CMGB-58 | Φ16-58 | SJ65/SJ75 | 60-120 | 46 | 74 | 10-25 |
Plastic PE PE PP PVC PA Conduit Pipe Single Wall Corrugated Pipe Extrusion Line Features:
This extrusion line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.
1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

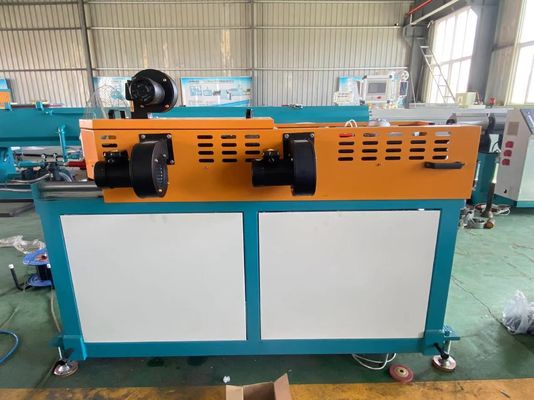

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

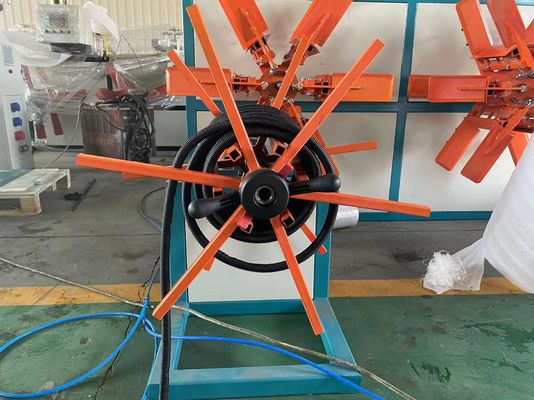

4.Coiler :Single position or double position with torque motor.
5.Electrical parts: ABB inverter, Siemens contactor, RKC thermo controllers etc.
Application of Plastic PE PE PP PVC PA Conduit Pipe Single Wall Corrugated Pipe Extrusion Line
Single wall corrugated pipe extrusion line designed by our company can produce PP/PE/EVA/PVC etc single wall corrugated pipes, which takes the advantages of high temperature resistance, abrasion resistance, corrosion resistance, high strength. This hose can be widely used in wire and cable products threading pipes, washing machine drains, vacuum cleaner, ventilation pipes, tubes, etc.
