Product Details:
|
| Material: | PVC Powder+additive | Max. Capacity: | ≥380kg/h |
|---|---|---|---|
| Power Supply: | 380v/3P/50Hz | Spec Of Pipe:: | Φ90-250mm |
| Speed Of Line: | 1-6m/min | Compressed Air:: | 0.4m3/min ＞0.5MPa |
| High Light: | 250mm Plastic PVC Pipe Extrusion Machine,380kg/h PVC Pipe Extrusion Machine,CE PVC Pipe Extrusion Line |
||
90-250mm Plastic PVC Pipe Extrusion Making Machine Line
This set is composed of the conical twin-screw extruder, vacuum calibrating +spraying cooling tank, haul-off, cutter, stacker or belling machine etc.
The extruder and haul-off adopt the imported AC frequency control device.The vacuum pump and hauling motor employ superior goods.Haul-off of different specifications,such as two caterpillars,three caterpillars,four caterpillars,six caterpillars etv are designed for different requirements.It may choose the saw blade cutting type or the planetary cutting type.It is additionally attached with lengh measuring apparatus and thickness increasing device.The unit is of reliable performance and high production efficiency.
Our company can manufature various pipes machines according to the client's requirements.
1. Description of PVC Pipe Making Machine :
PVC pipe extruder machine /VC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
Advanges:
1.Replacement molds can produce pipes with different diameters.
2.With a set of molds to produce two or four tubes at the same time.Increased production efficiency.
3.More cost-effective production line.
4.Greatly saving the use of the factory space.
5.High energy efficiency.Just a set of power systems.
6.Can significantly reduce the number of operators.
7.Simple operation.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm
|
Pipe range(mm) |
extruders
|
Max. output(kg/h) |
Max. speed(m/min) |
Total power(kw) |
Line length(m) |
| 16-50 |
SJSZ51/105
|
150 | 6m | 60w | 20m |
| 16-63 |
SJSZ45/90
|
120 | 10m | 45w | 20m |
| 50-110 |
SJSZ51/105
|
150 | 6m | 60w | 24m |
| 63-160 |
SJSZ65/132
|
300 | 5m | 100w | 24m |
| 110-250 |
SJSZ80/156
|
400 | 3.5m | 120w | 28m |
| 160-315 |
SJSZ 80/156
|
400 | 3m | 160w | 28m |
| 250-450 |
SJSZ 92/188
|
700 | 1.5m | 200w | 36m |
| 315-630 |
SJSZ92/188
|
700 | 0.9 | 230kw | 36m |
Related name: Pipe Machine, PVC pipe extrder. PVC pipe production line. PVC pipe extrusion machine, PVC pipe extrusion line.
2.More Pics About our Machine:

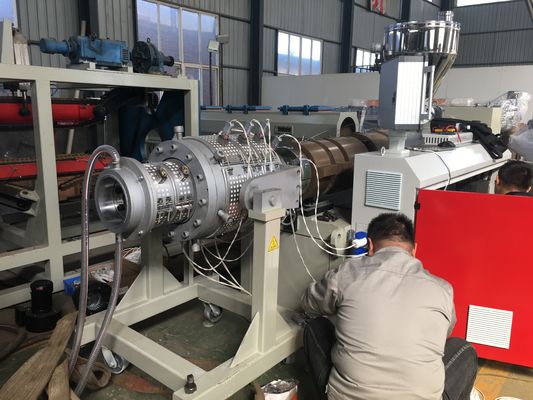

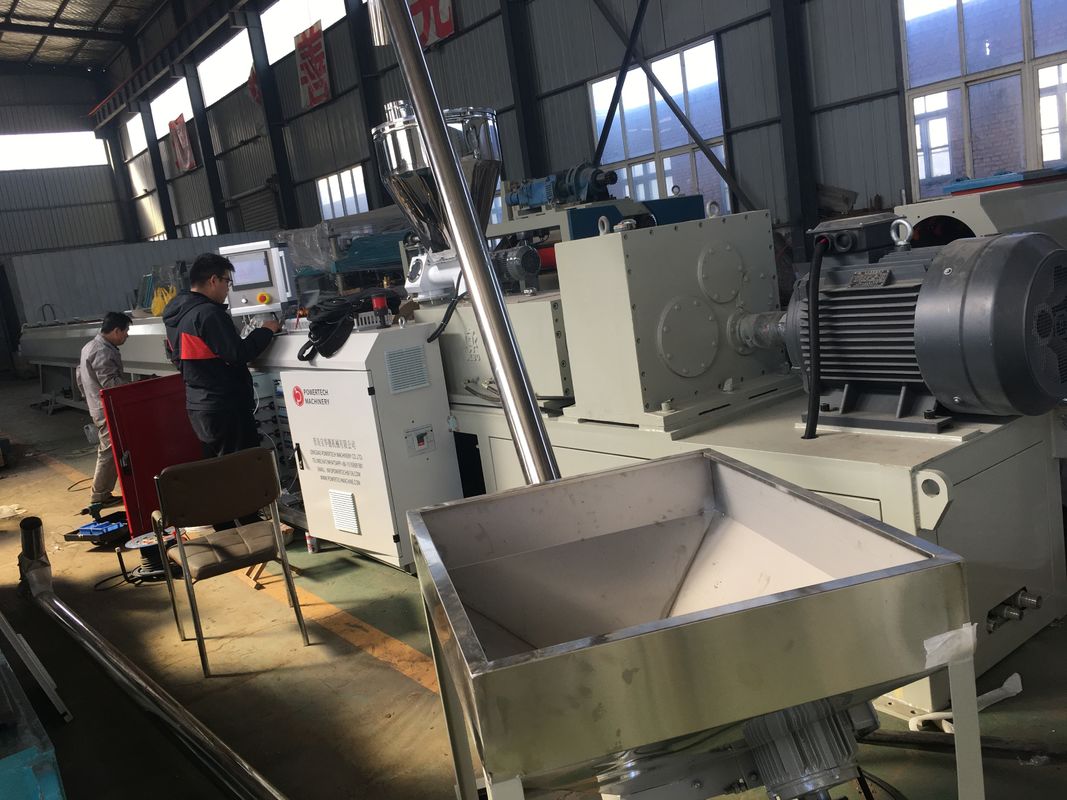

The conical twin-screw extruder
10 meters vacuum calibrating +spraying cooling tank
Haul-off adopt the imported AC frequency control device
3.FAQ:
1.Are you a factory or a trading company?
We are a factory.
2.How is your manufacturing capability?
China's old-fashioned manufacturer, the domestic market has cooperated with the local government and local leading construction companies for decades.
3.What services can you provide?
Problems encountered in the construction can be solved. If there is a problem with the pipeline, we will try our best to solve it or reissue it later.
4.Can you change the size for customers?
Of course, the product will be customized according to your needs, but the payment method requires a larger deposit in advance.
5.What are the advantages of your product?
High quality medium quality according to your needs, but fully up to standard and meet your needs, the price is lower than the market price.
6.Can you provide samples?
Yes, but you need to pay for shipping.
7.What are your payment terms?
We accept TT and we will issue an account after multiple cooperations.
8.How is the delivery time?
Depending on the quantity of goods, most requirements are generally met within 45 days.
9.Why choose us?
Decades of production experience and construction experience will help you more than the sales value.
