Product Details:
|
| Product Type: | PVC/PE/PP | Usage: | Plastic Forming Machine |
|---|---|---|---|
| Power: | 15kw | Speed: | 15-25M/MIN |
| Customized: | Customized | Warranty: | 1 Year |
| High Light: | Plastic Corrugated PVC Pipe Machine,Single Wall Corrugated PVC Pipe Machine,25M/MIN PVC Pipe Extrusion Line |
||
High Speed Single Wall Plastic Corrugated Extruder Machine/PVC Pipe Machine Extrusion Line
| Line Model | Extruder Model | Production Scope | Output | Total Power | Production LIne |
| PE-40 | SJ-45/30 | φ6-40mm | 60kg/h | 25KW | 8-11m/min |
| PE-63 | SJ-65/30 | φ12-63mm | 80kg/h | 30KW | 8-13m/min |
| PA-40 | SJ-45/28 | φ6-40mm | 60kg/h | 25KW | 8-11m/min |
| PVC-50 | SJ-51/105 | φ16-50mm | 100kg/h | 27KW | 8-15m/min |
High Speed Single Wall Plastic Corrugated Extruder Machine/PVC Pipe Machine Extrusion Line Description
1. Our plastic corrugated pipes machine is using Bearing close the forming moulds!So forming machines can run very fast,reach 15-25M/MIN.Normal forming moulds are closed by pins.Speed is usually 8-10M /Min.
2.Main machine is equipped with single screw extruder;Extruder is equipted with harden teeth gear box,38CrMoALA screw and barrel.

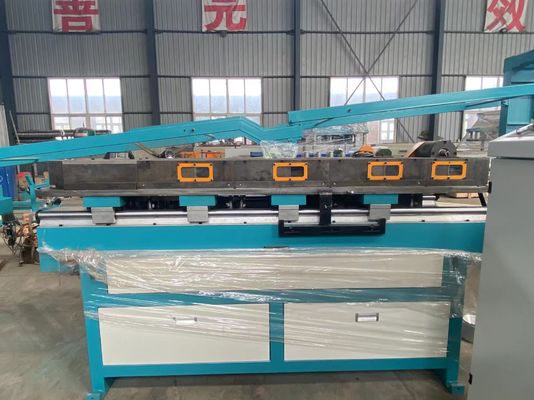

3.Adopts High speed Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
4. Forming modules: it is made of hard steel, with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change.

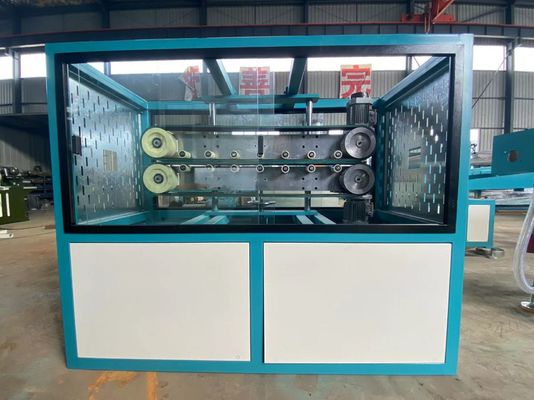

5. Coiler: Single position or double position with torque motor.
6. Electrical parts: ABB inverter, Schneider contactor, RKC temperature controllers etc.
Application
Raw Materials on this Line: PE/PA/EVA/PP
