Product Details:
|
| Pipe Diameter: | 110-250mm | Screw No.: | Twin-screw |
|---|---|---|---|
| Motor Power: | 75 Kw | Automation: | Automatic |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 110mm Drainage PVC Pipe Extrusion Line,Power Supply PVC Pipe Extrusion Line,PLC Water Supply Conduit Extruder |
||
Technical parameters:
| Item | SJSZ-51 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
| Screw diameter(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
| Number of screw | 2 | 2 | 2 | 2 |
| Screw rotate speed(rpm) | 1-45 | 1-35 | 1-37 | 1-33 |
| Effective length of screw(mm) | 1070 | 1440 | 1800 | 2500 |
| Motor power(KW) | 18.5 | 37 | 55 | 90 |
| Barrel heating power(KW) | 18 | 24 | 36 | 86.8 |
| Capacity (kg/h) | 80-150 | 250-300 | 320-400 | 600-800 |
| Center height(mm) | 1000 | 1000 | 1000 | 1200 |
| Net weight(kg) | 3200 | 4000 | 5000 | 8000 |
| Dimension(mm) | 3600x1100x2100 | 4235x1520x2100 | 4750x1550x2460 | 6725x1550x2841 |
Description of PVC Water Supply Conduit Power Supply Drainage Pipe PLC Control PVC Pipe Extrusion Line:
The PVC Pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system(water supply and drainage pipe), pavement of cables and as well as different diameter and thickness of PVC Pipes. The complete PVC Pipe production line is composed by conical twin screw extruder, pipe extrusion mold, vacuum calibration tank, haul off machine, cutter and stacker, belling machine (socketing machine). The main extruder and haul off we adopts ABB inverter, vacuum pump and motors adopt high quality famous brand. Haul off machine has two claws, three claws, four claws, six claws and eight claws accord to different pipe diameters. For pipe cutting machine has saw and planetary cutting type, which additionally attached with the meter counter and intensifying device. The production line is easily installation and operation, simple maintenance with reliable quality.
Featuresof PVC Water Supply Conduit Power Supply Drainage Pipe PLC Control PVC Pipe Extrusion Line:
Introduction of PVC Water Supply Conduit Power Supply Drainage Pipe PLC Control PVC Pipe Extrusion Line:

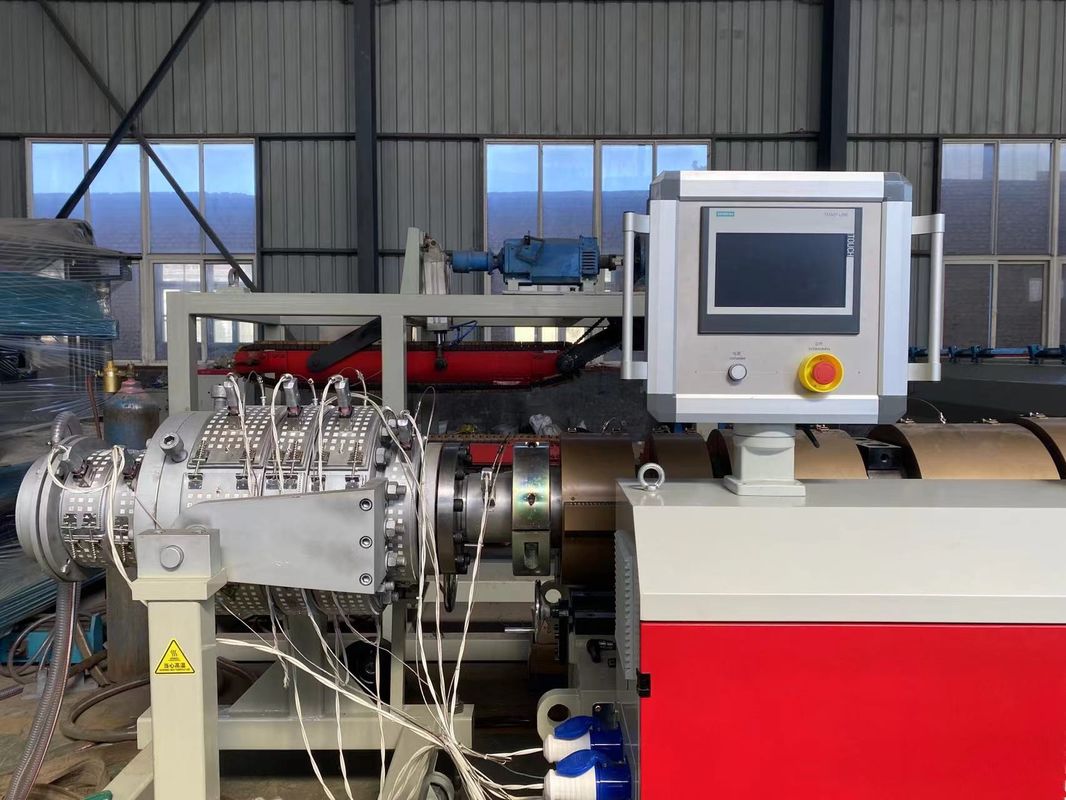

Conical Twin Screw Extruder for PVC water supply, conduit, power supply and drainage pipes
PVC Calibration molds installed on the vacuum calibration tanks to control pvc pipes thickness.

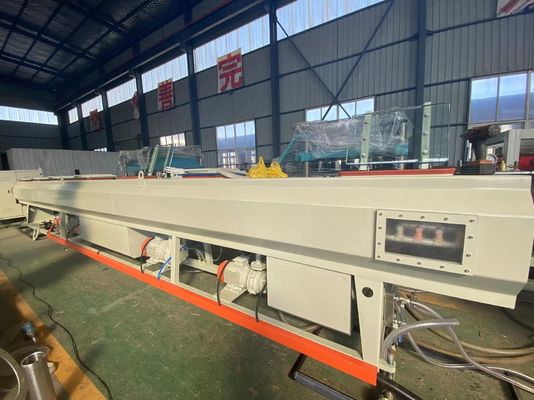

Vacuum Calibration tanks with high quality stainless steel 304 material
Complete PVC Dual Pipe Extrusion Production Line for PVC pipes from 16mm to 63mm
Top Quality Conical twin screw with 38Cr material
Conical twin screw specially designed for PVC powders
