Product Details:
|
| Pipe Diameter: | 90-250mm | Screw No.: | Twin-screw |
|---|---|---|---|
| Plastic Capacity: | 360kg/h | Total Power: | 145KW |
| Speed: | 1-3.6m/min | Warranty: | 1 Year |
| High Light: | PLC System PVC Pipe Extrusion Line,Conduit Gas PVC Pipe Extrusion Line,3.6m/min UPVC Pipe Extrusion Machine |
||
| Model | Pipe O.D. (mm) |
Main Extruder | Max.Capcity(kg/h) | Max.Hauling Speed (m/min) |
| SYPVC-63 | Ø16-Ø63 | SJSZ-50/105 | 130 | 16 |
| SYPVC-110 | Ø20-Ø110 | SJSZ-55/120 | 180 | 12 |
| SYPVC-160 | Ø63-Ø160 | SJSZ-65/132 | 200 | 8 |
| SYPVC-250 | Ø63-Ø250 | SJSZ-80/156 | 460 | 8 |
| SYPVC-400 | Ø110-Ø400 | SYSZ-80/156 | 550 | 2.4 |
| SYPVC-630 | Ø160-Ø630 | SJSZ-92/188 | 750 | 1.6 |
Introdyction of PVC CPVC UPVC Material Conduit Gas Water Supply and Drainage Pipe PLC System PVC Pipe Extrusion Line
Conical Twin Screw Extruder
Attached with bialloy screw & barrel, which is with enough nitreagon thickness,that will allow high percentage CaCo3 and longer life time.
Die mold.
Pipe Dia. :Φ16-63mm
Mould material:Refined #45 steel forge and Inner channel is chrome plated
Sizer material:Brass alloy
Heating ring:Mica & Ceramic
Vacuum calibration & cooling tank
100% SUS 304.
Equipped with muffler silencing device
temperature controller automatic drainage system
and manual drainage system.

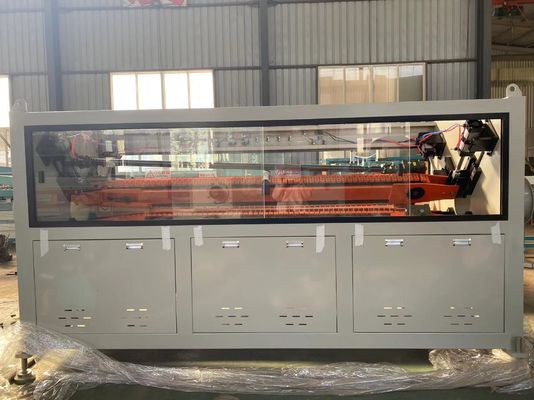

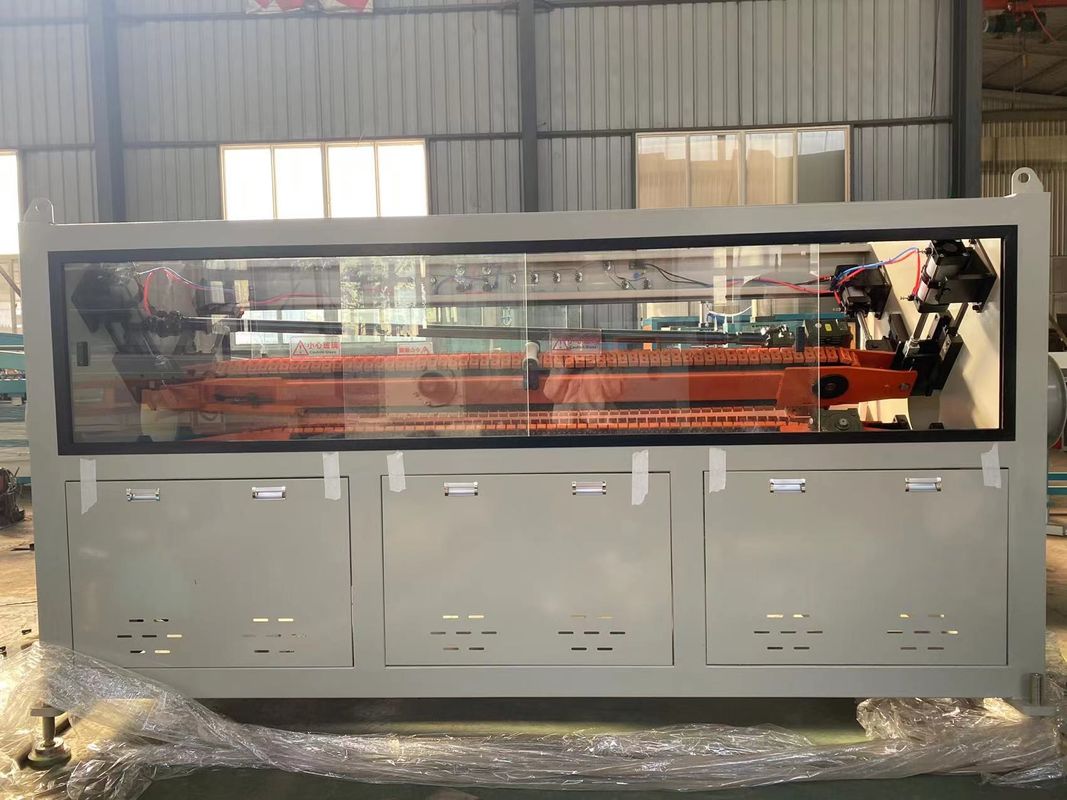

3-Claw haul-off equipment
Own designed traction structure,could save electric consumption,
and easy to operate & maintainance.
More importantly, stronger traction ability.
Non dust pipe cutter
With SIEMENS PLC , OMRON encoder
Ensure exact cutting length.
Smooth cutting surface and better cutting speed than before.

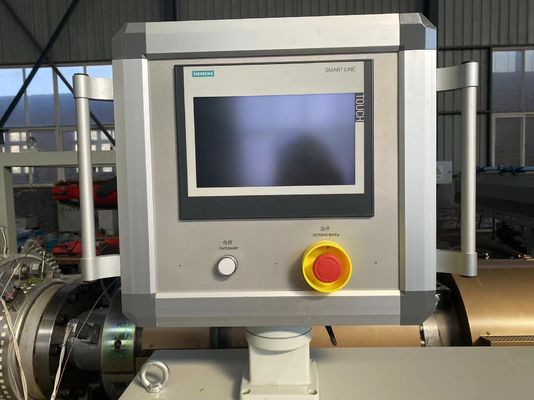

Electric Cabinet
SIMENS PLC & SIEMENS TOUCH SCREEN
ABB Inverter
CHTN low voltage electrics
