Product Details:
|
| Pipe Diameter: | 90-250mm | Screw No.: | Twin-screw |
|---|---|---|---|
| Product Type: | PVC Pipe | Speed: | 1-3.6m/min |
| Production Line Length(m): | 30 | Warranty: | 1 Year |
| High Light: | 250mm Drainage PVC Pipe Extrusion Line,Water Supply PVC Pipe Extrusion Line,3.6m/min PVC Pipe Production Line |
||
Product Description of Water Supply Water Drainage PVC Pipe Production Line/PVC Pipe Extrusion Line
1. Performance & Advantages:

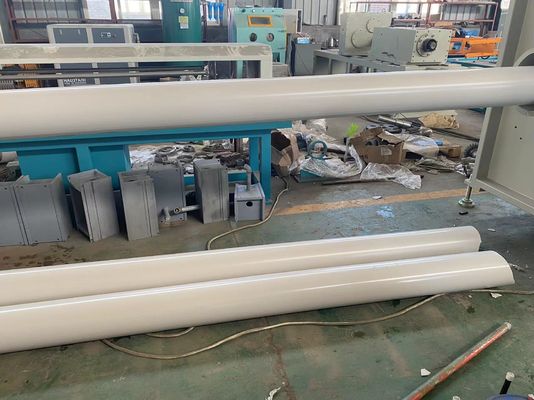

PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

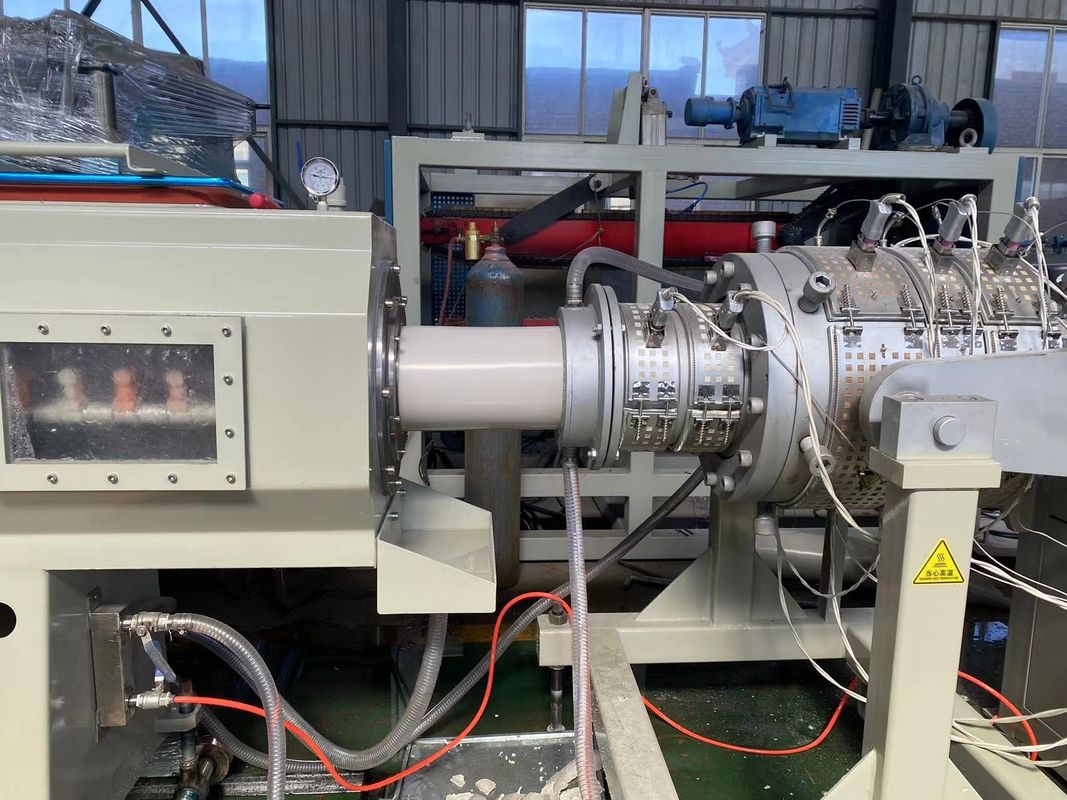

This set is composed of the conical twin-screw extruder, vacuum calibration tank, printer, haul-off, cutter, stacker, etc.
The extruder and extractor adopt the imported AC frenquncey control device.
The vacuum pump and the main motor adopt the famous brand.
The haul-off has many different kinds of Model, such as two-claw, three-claw, four-claw, five-claw, six-claw.
About the cutter, you can choose the saw blade cutting type or the planet cutting type.
PVC pipe extrusion lines can produce pipes in PVC materials, with diameters starting from 16mm up to 630 mm.
2. Technical parameters of PVC pipe extrusion line
| Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| Pipe dia. (mm) | 16-63 | 75-160 | 125-250 | 180-315 | 200-450 | 355-630 |
| Vacuum tank length(m) | 6 | 6 | 6 | 9 | 9 | 9 |
| Pressure of vacuum | 0.03-0.80 | |||||
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Hauling speed(m/min/max) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Refilled water volume (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Production Line Length(m) |
20 | 22 | 30 | 30 | 36 | 42 |
