Product Details:
|
| Product Type: | PE PP | Screw No.: | Single Screw Extruder |
|---|---|---|---|
| Pipe Diameter: | 16-50mm | Screw Barrel Raw Material: | 38crmoaia |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | 50mm PVC Conduit Pipe Machine,30kgh Corrugated Pipe Machine,PVC Conduit Pipe Extruder |
||
|
Main Technique Parameter
|
||||
|
Pipe Diameter Range(mm)
|
4.5-9
|
9-32
|
16-50
|
20-100
|
|
Main Machine Model
|
SJ-30
|
SJ-50
|
SJ-65
|
SJ-65
|
|
Extruder L/D
|
30:1
|
30:1
|
30:1
|
30:1
|
|
Production Capacity(kg/h)
|
10
|
30
|
50
|
100
|
|
Extruder Motor Power(KW)
|
4
|
15
|
18.5
|
37
|
|
Forming Machine Motor Power(KW)
|
1.1
|
1.5
|
2.2
|
4
|
|
Quantity of Mold Pairs
|
42
|
50
|
50
|
72
|
|
Cooling Style
|
Wind & Water Cooling
|
|||
|
Production Speed(m/min)
|
6-10
|
8-12
|
8-12
|
2-6
|
|
Metering Way
|
Inducting Mold
|
|||
|
Coiling Way
|
Automatically & Manually
|
|||

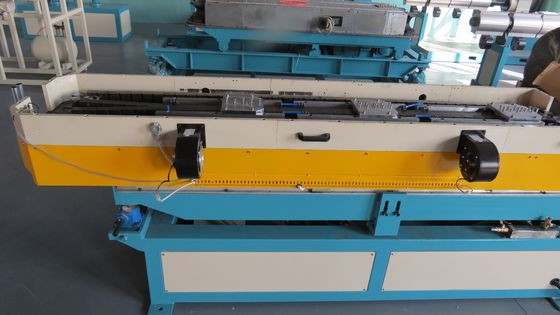

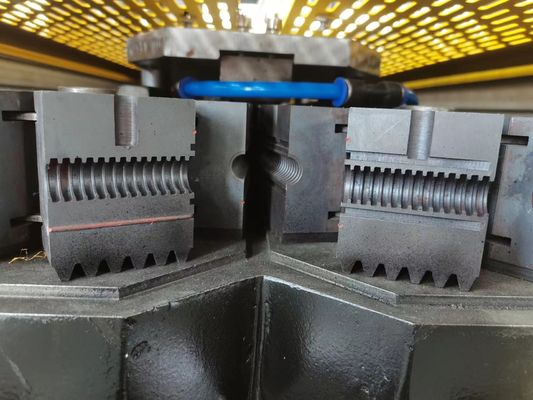

PE PP plastic corrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.
The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.
Working process
Raw material →vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
