PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe
PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe
PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe

Large Image :  PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe

Product Details:
Place of Origin: China
Brand Name: Win-Win
Certification: CE
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Stretch Film+Wood Conton
Delivery Time: 45workdays
Payment Terms: T/T
Contact Now

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe

Description
Extruder: Conical Twin Screw Extruder Die Head And Molds: 16-630mm PVC Pipe Extrusion
Screw Barrel Raw Material: 38crmoaia Extruder Heater: Cast Aluminum / Ceramic
Vacuum Water Spray Tank: 6 Meter Stainless Steel Making Warranty: 1 Year
High Light:

PVC Four Pipe Extrusion Line

,

PVC Four Pipe Extrusion Line

,

250kg/h Single Pipe Extrusion Line

PP PE PVC single/Double o/ Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe

PP PE PVC Single/Double/Four Pipe Extrusion Line Water Supply

Double cavity PVC UPVC pipe production line :

with conical twin screw extruder as main extruder,
equip with GF series auxiliary machinery, specially designed for PVC pipe(UPVC,CPVC share machines), is mainly used in the area of
agricultural water supply system, architectural water supply system, pavement of cables, etc .
The line is conical twin screw extruder equipped with double single-control stainless steel vacuum spraying calibration, it avoids
waste condition when one tube is adjusted and the other one is affected. The auto single-control double hauling off machine ane
cutting machine are combined with the front double calibration technology to make operation more flexible.
16-40mm can be double cavity with SJSZ51/105 as main extruder,
16-50mm can be double cavity with SJSZ55/120 or SJSZ65/132 as main extruder,
16-63mm can be double cavity with SJSZ65/132 as main extruder,
50-110mm can be double cavity with SJSZ80/156 as main extruder.
here take 50-110mm pipe line for example,
Pipe Diameter range: 50mm,63mm,75mm,90mm,110mm. Two Pipe Outlets.
Major parts of High quality 50-110mm two cavity PVC pipe production line with SJSZ80/156 as main extruder :
No.
Major Parts
Detail information
1
DTC-600 Screw conveyor(loading for mixer)
Driving motor: 1.5KW
2
SRL-Z300/600 Hot/Cold PVC Mixing unit
Driving motor:55/11KW,
3
DTC-600 Screw conveyor(loading for extruder)
Driving motor: 1.5KW
4
SJSZ-80/156 Conical twin screw extruder
Driving motor: 55KW, Capacity: 250-400KG/HOUR;
5
Two cavity PVC pipe moulds
Pipe size: 50mm,63mm,75mm,90mm,110mm.
two pipe outlet;
6

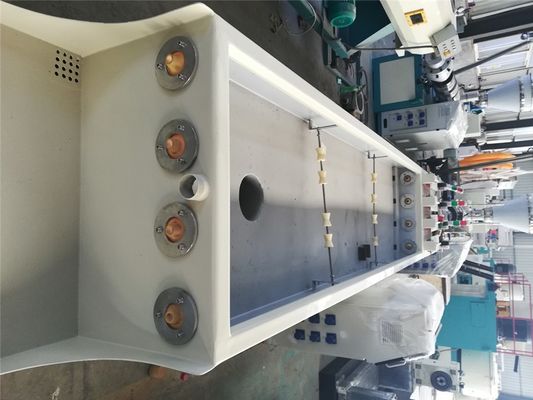

Two pipe vacuum forming tank
Tank length: 4000mm; vacuum pump: 2*2.2KW,
Water pump: 2*3KW, stainless steel tank
7

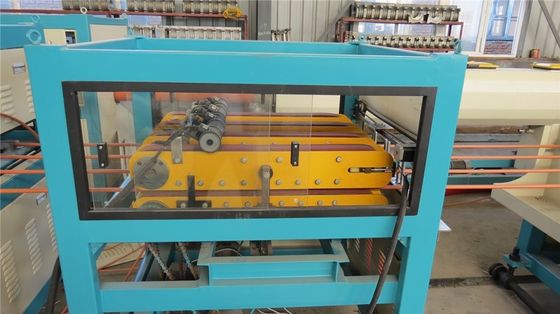

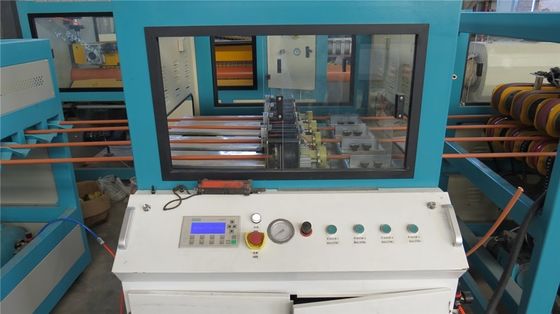

Two pipe haul off-cutting machine
Haul off motor: 4*1.5KW, 2 caterpillars,rubber blocks;
Knife-lift cutter motor: 2*1.1KW
8
Two pipe stacker
Stacker Length: 4meter, automatic control

Advantage

- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

- world famous brands major parts:
Motor:
with SIEMENS
Inverter:
with ABB/DELTA/LS
Contactors:
with SIEMENS/Schneider
Temperature
with OMRON/RKC/FUJI

Features and application:

The production line is developed with the advanced technology of West Europe by our company. The main machine is SJSZ 65/132 conical twin screw extruder is equipped with four-tube single-control stainless steel spraying calibration. It avoids waste condition when one tube is adjusted and the others are affected. The auto single-control four drawing machine and cutting machine are combined with the front four calibration technology to make operation more flexible. Let you enjoy economic benefit which is brought by spearate-control four-tube extruding.
The machine with energy efficient conical twin-screw extruder and through special mould one-time extrusion four piece of PVC pipe, effective energy conservation, can improve the production and efficiency, save land and labor costs.

Main technical datas of PVC double pipe extruder machine:


 PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 0

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 1

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 2

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 3



PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 4

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 5

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 6

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 7

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 8

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 9

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 10

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 11

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 12

PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 13PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 14PP PE PVC Double or Four cavity Pipe Extrusion Line Water Supply Pipe Electric Pipe 15
