Product Details:
|
| Specification: | 20-63mm | HDPE Pipes: | Single-wall |
|---|---|---|---|
| Usage: | Cable Wire Duct | Screw: | Single-screw |
| Warranty: | 1 Year | Condition: | New |
| High Light: | Conduit Sheath Corrugated Pipe Extruder,PVC Sheath Corrugated Pipe Extruder,Electrical Conduit Sheath Pipe Extruder |
||
Plastic PVC/PE/PP Single Wall Corrugated Electrical Conduit Protective Sheath Pipe Extrusion Line
Technical conditions:
| Model | Pipe Diameter (mm) | Motor Power | Speed (m/min) | Max .Output (kg/h) | Total Power |
| SJ-45X30 | 5-15 | 15 | 1-20 | 45 | 35 |
| SJ-50X30 | 16-32 | 18.5 | 1-15 | 90 | 55 |
| SJ-65X30 | 40-63 | 37 | 1-10 | 120 | 70 |
Description of PE/PP/PVC Single Wall Corrugated Pipe Manufacturing Equipment:

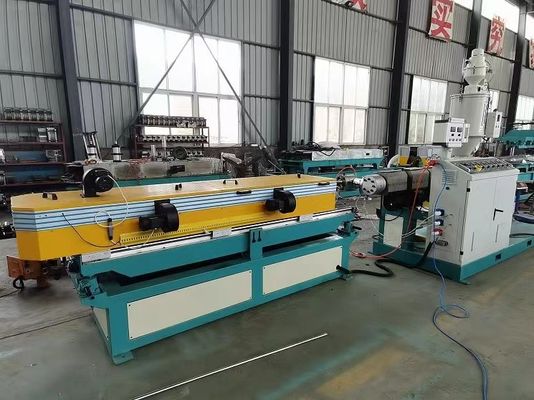

Introduction of PE/PP & PVC Single Wall Corrugated Pipe Production Line
It consists of automatic feeding system/single screw extruder/die head/forming machine /winder. It is mainly produce PE/PP/PVC single corrugated pipe. The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.
Characteristics and Application of Pipe:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
Machine parts list:
1. Single screw extruder: SJ-45/30, 65/30
2. Corruated pipe mold: 50-72pairs

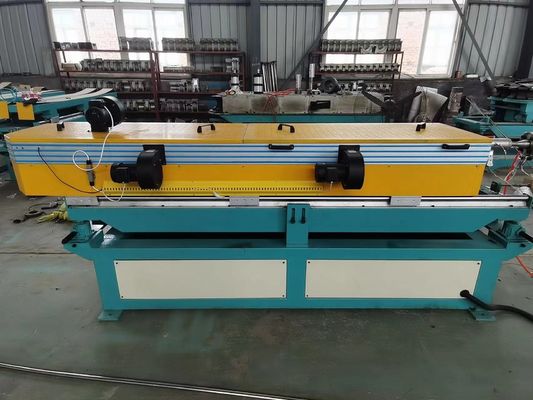

3. Corrugated pipe forming machine
4. Double station winder
5. Electric control cabinet.
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
