Product Details:
|
| Product Type: | PE PP | Screw No.: | Single Screw Extruder |
|---|---|---|---|
| Pipe Diameter: | 16-32mm | Screw Barrel Raw Material: | 38crmoaia |
| Automation: | Automatic | Warranty: | 1 Year |
| High Light: | 32mm Conduit Pipe Extrusion Line,380v Corrugated Pipe Extrusion Line,PE PP Corrugated Pipe Extruder |
||
Technical conditions:
| 1,Power supply | 380v/3P/50Hz | ||||
| 2,supply Material | PE PP granule | ||||
| 3,Capacity of extrusion | |||||
|
Model
|
Material
|
Max. capacity
|
Remarks
|
||
| SD SJ-45×30 | PP | ≥35kg/h | Pipe extrusion | ||
| 4,Spec of pipe: | Φ20mm | ||||
| 5,Speed of line | 1-12m/min | ||||
| 6,Central height of extruder | 1000mm | ||||
| 7,Operation direction | from right to left | ||||
| 8,Cooling cycling water | ≤20℃ ≥0.3Mpa ～5T/h | ||||
| 9,Compressed air | 0.4m3/min ＞0.5MPa | ||||
| 10,Total Powder | 28KW | ||||
| 11,Weight | 2.5t | ||||
| 12,Dimension | 15*3.5*2m | ||||
PE PP plastic corrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.
The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.
Working process
Raw material →vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

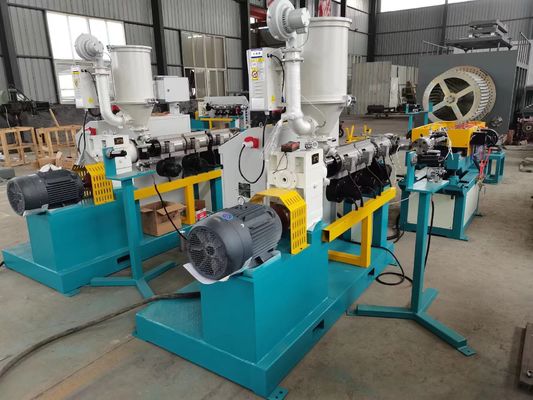

This extrusion line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.
Features:
1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

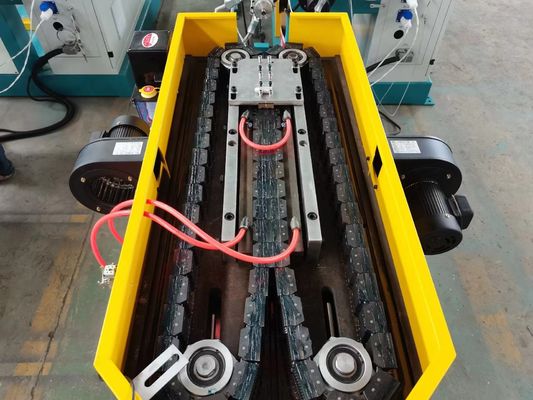

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4.Coiler :Single position or double position with torque motor.
5.Electrical parts: ABB inverter, Siemens contactor, RKC thermo controllers etc.
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
