Product Details:
|
| Product Type: | PE PP PVC PA | Screw No.: | Single Screw Extruder |
|---|---|---|---|
| Pipe Diameter: | 16-32mm | Production Speed: | 1-30m/Min |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Conical Corrugated Pipe Extrusion Line,30m/Min PVC Wire Production Line,Corrugated PE Pipe Extrusion Line |
||

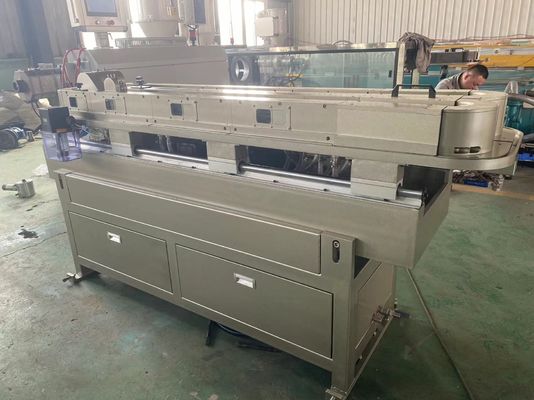

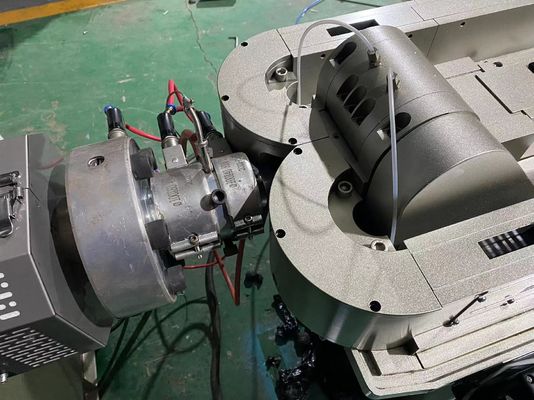

High Speed PE PP PVC Wire Production Single Wall Corrugated Pipe Extrusion Line
| Material | Machine model | Extruder | Pipe diameter(mm) | Production speed(m/min) |
| PE/PP | SNDPG-25 | SJ45/30 | φ11mm-φ25mm | 20 |
| SNDPG-63 | SJ55/30 | Φ25mm-φ63mm | 10 | |
| SNDPG-90 | SJ65/30 | Φ50mm-φ90mm | 5 | |
| PVC | SNDPG-63 | SNSZ51/105 | Φ25mm-φ63mm | 5 |
| SNDPG-110 | SNJZ65/132 | Φ50mm-φ110mm | 3 |
Description of PLC Control Plastic PE PP PVC Single Wall Corrugated Pipe Extrusion Line:
The high speed corrugated pipe production line adopts PLC control system, which is complete functions and easy operation, has linkage functions.
When power cut happens in the process of production, it can effectively protect the safety of equipment and molds. It uses a whole closed track to transfer molds, stable operation and high production efficiency guarantee the fastest production reate reaching 25 meters per minute. Equipped with one mold with double chambers may save a considerable cost for customers.
Application of PLC Control Plastic PE PP PVC Single Wall Corrugated Pipe Extrusion Line:
This production line is suitable for such productions as automobile wire harness tube, electric wire conduit, washing machine tube, air conditioner tube, extension tube, medical breathing tube and various other hollow molding tubular products etc.
Process line of PLC Control Plastic PE PP PVC Single Wall Corrugated Pipe Extrusion Line:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing.
Our Advantages
Multi-functions
We Win Win Machinery can supply major machines as below 10items:
1, Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2, Single screw extruder;
3, Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9, Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
