Product Details:
|
| Product Type: | PE PP PVC PA | Screw No.: | Single Screw Extruder |
|---|---|---|---|
| Pipe Diameter: | 16-32mm | Production Speed: | 1-30m/Min |
| Condition: | New | Warranty: | 1 Year |
| High Light: | 30m/Min Corrugated Pipe Extrusion Line,PA Conduit Pipe Extrusion Line,PVC Single Screw Extruder |
||

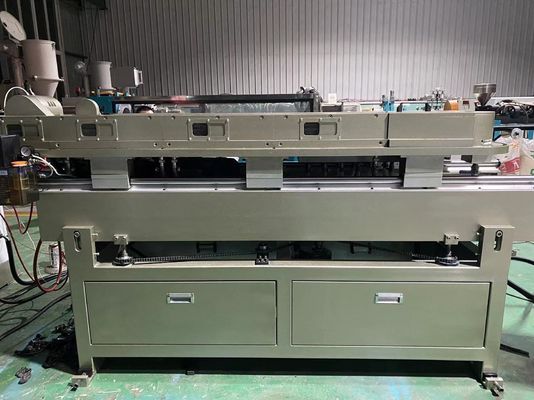

PE PP PVC PA Conduit Pipe Single Wall Corrugated Pipe Extrusion Line
1. Normal speed
| Model | Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | Production line speed(m/min) |
| SD-12 | Φ6-12 | SJ-45 | 40-60 | 16 | 42 | 6-12 |
| SD-32 | Φ16-32 | SJ-50 | 50-70 | 23 | 48 | 6-12 |
| SD-63 | Φ20-63 | SJ-65 | 60-100 | 38 | 56 | 4-8 |
| SD-80 | Φ50-80 | SJ-75 | 70-130 | 64 | 72 | 3-8 |
| Model | Pipe diameter(mm) | Extruder model | Output(kg/h) | Total power(kw) | Module No.(pairs) | Production line speed(m/min) |
| SD-14 | Φ7-14 | SJ45/SJ50 | 40-80 | 25 | 70 | 10-30 |
| SD-58 | Φ16-50 | SJ65/SJ75 | 60-120 | 46 | 74 | 10-30 |
Description of PE PP PVC PA Conduit Pipe Single Wall Corrugated Pipe Extrusion Line

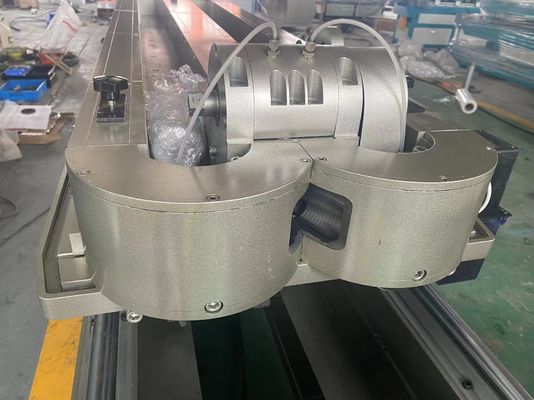

High speed single wall corrugated pipe making machine can produce PE,PP,EVA, PVC, PA etc material single wall corrugated pipe continuously. We designed new technology, replace the traditional chain forming machine. The appearance and precision of single wall corrugated pipe hav improv gratly. The production line is driven by gears, and the mold runs in the track. It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.
Our Advantages
Multi-functions
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
