Product Details:
|
| Product Type: | PE | Pipe Diameter: | Customized |
|---|---|---|---|
| Screw Type: | Single Screw | Customized: | Customized |
| Condition: | New | Warranty: | 1 Year |
| High Light: | HDPE Plastic Pipe Making Machine,Automatic HDPE Pipe Making Machine,55/30 HDPE Pipe Extrusion Line |
||
Fully Automatic Vacuum Forming HDPE Plastic Pipe Making Machine
Equipment List:
| No. | Name | Quantity |
| 1 | Single screw extruder | 1 SET |
| 2 | Head die and mould | 1 SET |
| 3 | Mould block | 1 SET |
| 4 | Forming machine | 1 SET |
Product Description of Fully Automatic Vacuum Forming HDPE Plastic Pipe Making Machine
The machine inclued: SJ - 55/30 type single screw extruder, die head mold, forming machine, cutting machine, winder system or stacking machine. Product material is PVC/PE, optimal pipe diameter range for Φ 50-200 mm Φ. Simple operation, good integrity, continuous and stable production, low noise, high efficiency, long service life.
The spiral corrugated pipe product has special spiral physical structure, the pipe material mechanical performance is good, the compressive strength, pipe buried under deformation, inner spiral uniform cable around the cooling efficiency and effectively protect the security of the cable.
Introduction of Fully Automatic Vacuum Forming HDPE Plastic Pipe Making Machine
Qingdao Win Win Machinery, the company is focusing on research and development of the continuous production of PE, PVC corrugated pipe production line manufacturing. The line could produce spiral corrugated pipe by HDPE or PVC raw materials.
The company also offers a wide range of other plastic machinery
such as cable shealthing pipe machine and drainage pipe extrusion machine.
This highly efficient equipment is capable of producing various sizes
and shapes of HDPE Spiral pipe extrusion line in accordance to customer's requirements.
The whole process is automated from material feeding to finished product delivery, ensuring maximum efficiency while minimizing labor costs.
With years of experience in the industry and excellent after-sales service,
Qingdao Win WIin Machinery provides customers with reliable products that meet their demands for quality assurance at competitive prices. Whether you need a small or large scale project, our team will work closely with you to customize solutions that fit your specific needs perfectly.
Features of Plastic Corrugated Pipe Production Line Single Wall Corrugated Pipe Extrusion Line
Single screw extruders especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.
• The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce with smooth inside and outside face.
• All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded for various uses, 80% of recycle material can be used in production;
• Optimum spiral copper sizing sleeve, its entrance carrying pre-cooling and powerful vacuum device to suit for high speed extruding pipe.
• Specific design for spray cooling trough.
• Cooling water trough is made of stainless steel
• High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
• Three-dimensional regulation, longitudinal move by motor.
• Advanced co-extrusion technology and low cost to use recovery material.
Our Advantages
Multi-functions
Product consist:
High Capacity Single Screw Plastic Extruder:
The extruder using the special designed single screw making the product foaming well.Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.
Extrusion Die
The die head is suitable to produce 50mm to 150mm.
It adopts 40Cr moulds materials with spiral plastic flow structure.
Forming Copper Sleeve
It is made by copper materials with two stainless steel flage. Special design for spiral pipe forming

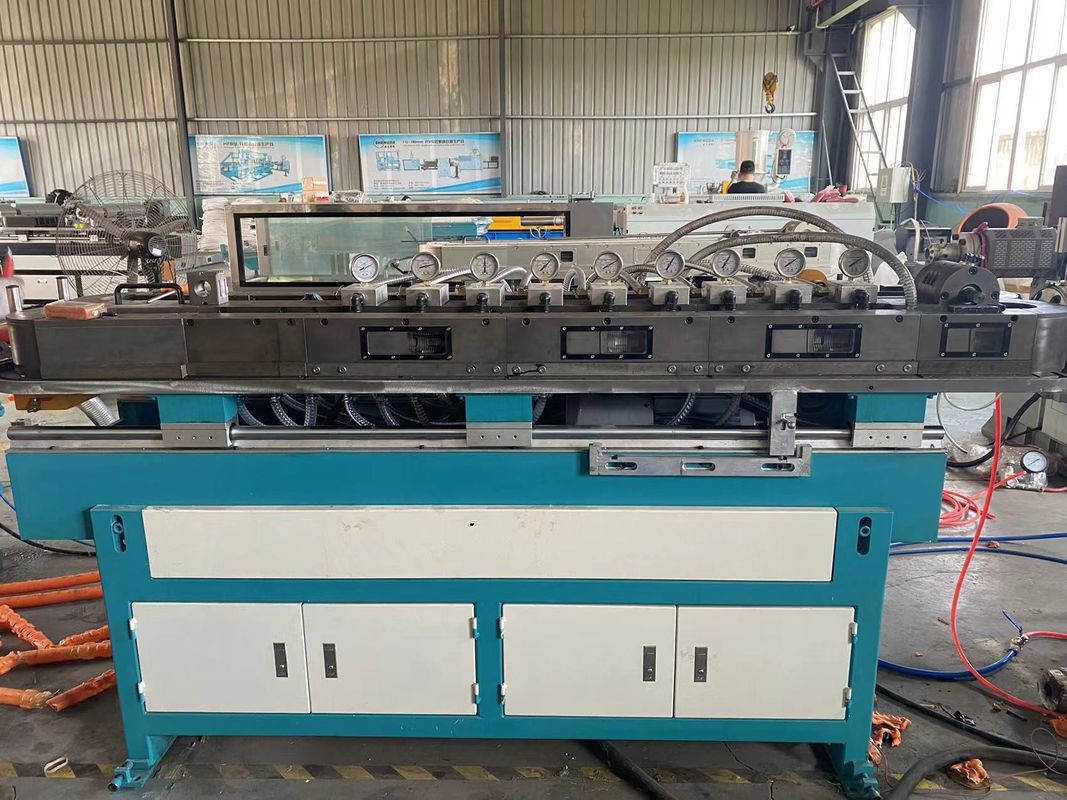

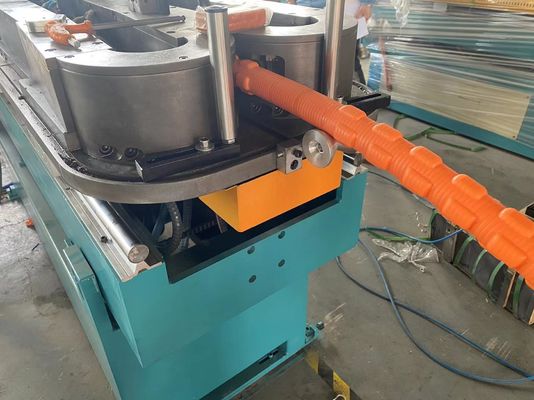

Forming Machine
There is rotating motor, water pumb, and vacuum pumb unit.
The automatic oil pump is added to ensure the long life service.
Forming Machine
There is rotating motor, water pumb, and vacuum pumb unit.
The automatic oil pump is added to ensure the long life service.
Cutting Unit
Cutting way: saw cutting
Motor:1.5kw
Cutting Unit
Cutting way: saw cutting
Motor:1.5kw
We Win Win Machinery can supply major machines as below 10items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
2,Single screw extruder;
3,Conical twin screw extruder;
4, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
5, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
6, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
7, PVC 2 cavity pipe production line;
8, PVC 4 cavity pipe production line;
9,Pipe belling machine;
10, Granulating line (PE, PP, PVC)
Qingdao Win Win Machinery Co., Ltd. is a new type of high-tech enterprise specializing in R & D and production of extrusion machine. The company's main products -- plastic pipe extrusion complete production line.
Our production technology of single / double wall corrugated pipe machine, carbon spiral pipe machine and solid wall pipe machine has always been in the leading position in the industry.
If you need plastic extrusion equipment, please feel free to contact me!
